DS-K1T605
2 reviews

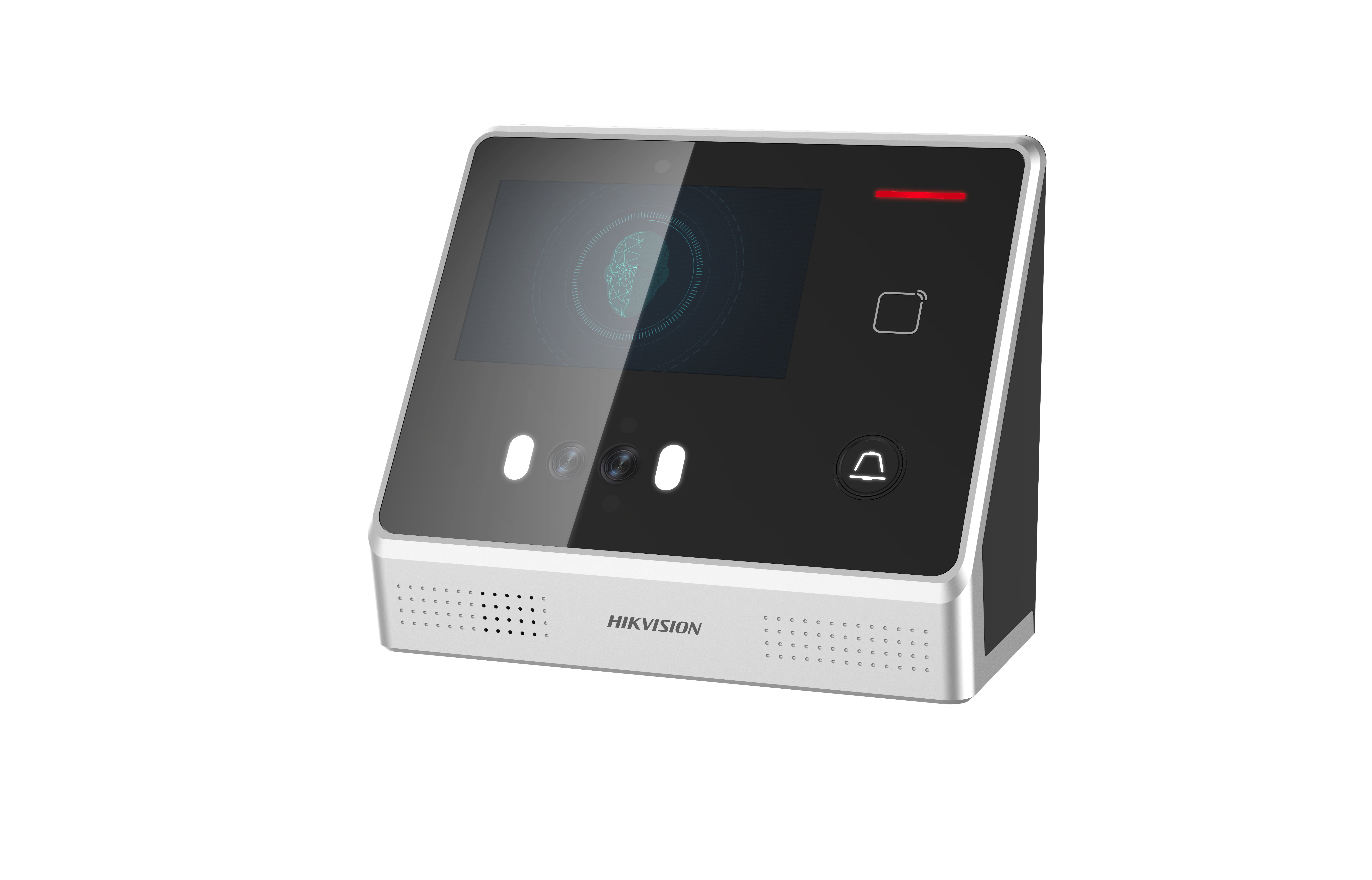

Facial Recognition Terminal
◆IP Based Fingerprint Access Control Terminal
◆Fingerprint Recognition
◆Face Detection Video Recording via NVR
◆TCP/IP and WiFi Connection
◆Mifare Card Reading
◆LCD Display Screen
◆2MP Picture Capturing Technology
◆Supports Offline Operation
◆Max 100,000 card No
◆Max 300,000 Access Control Event
◆Max 5000 Figerprints Storage
| Card Reading Frequency: | 13.56MHz |
| Face Recognition Duration: | ≤ 1 s/Person |
| Operation System: | Linux |
| Fingerprint Module: | Optical, Red Backlight |
| Card Capacity: | 5,000 |
| Face Recognition Accuracy Rate: | ≥ 99% |
| Card Type: | Mifare Card |
| Camera: | 0.3 MP Wide-Angle |
| Fingerprint Capacity: | 5,000 |
| Event Capacity: | 100,000 |
| Face Recognition Distance: | 0.3 m to 1 m |
| Face Capacity: | 2,000 |
| Device Interfaces | |
| Communication Mode: | Ethernet 10/100Mbps Self-adaptive; Wi-Fi |
| Output Interface: | Doorbell × 1, Lock × 1, Alarm Output × 1 |
| Input Interface: | RS-485 × 1, Wiegand × 1, Door Magnetic Sensor × 1, Exit Button × 1, Tamper × 1, Alarm Input × 2 |
| USB Interface: | USB2.0 |
| General | |
| LCD Screen: | 5-inch LCD Touch Screen; Resolution: 800 × 480 |
| Lithium Battery: | Lithium Battery Capacity: 3400 mAh |
| Power Supply: | 12 VDC/2 A |
| Installation: | Base Mounting; Wall Mounting |
| Application Situation: | Indoor |
| Working Humidity: | 10% to 90% (Non-Condensing) |
| Working Temperature : | -10°C to +50°C (14°F to +122°F) |
| Dimensions (L×W×H): | 190mm × 157mm × 98mm (7.48” × 3.86” × 6.18") |
