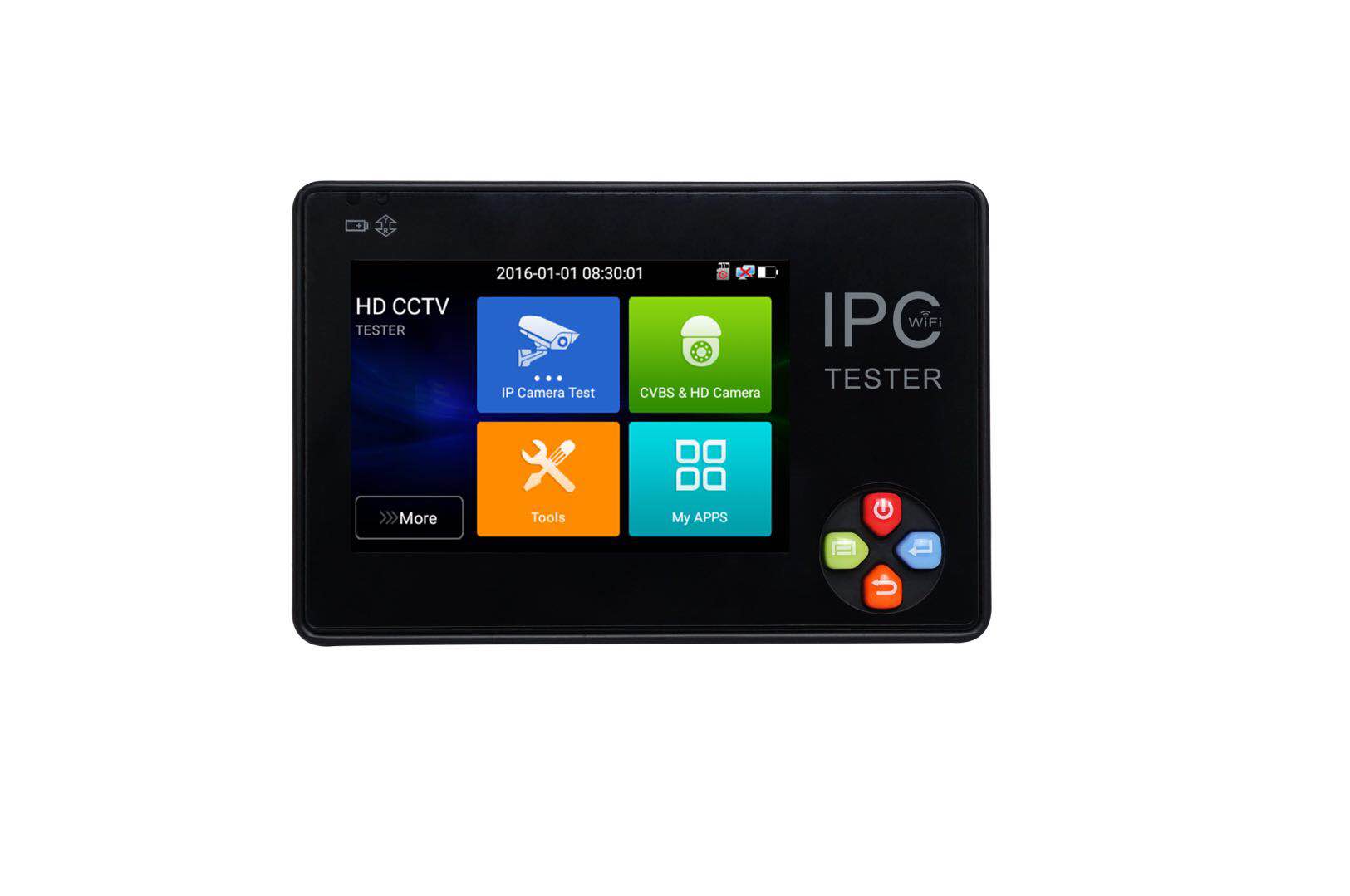

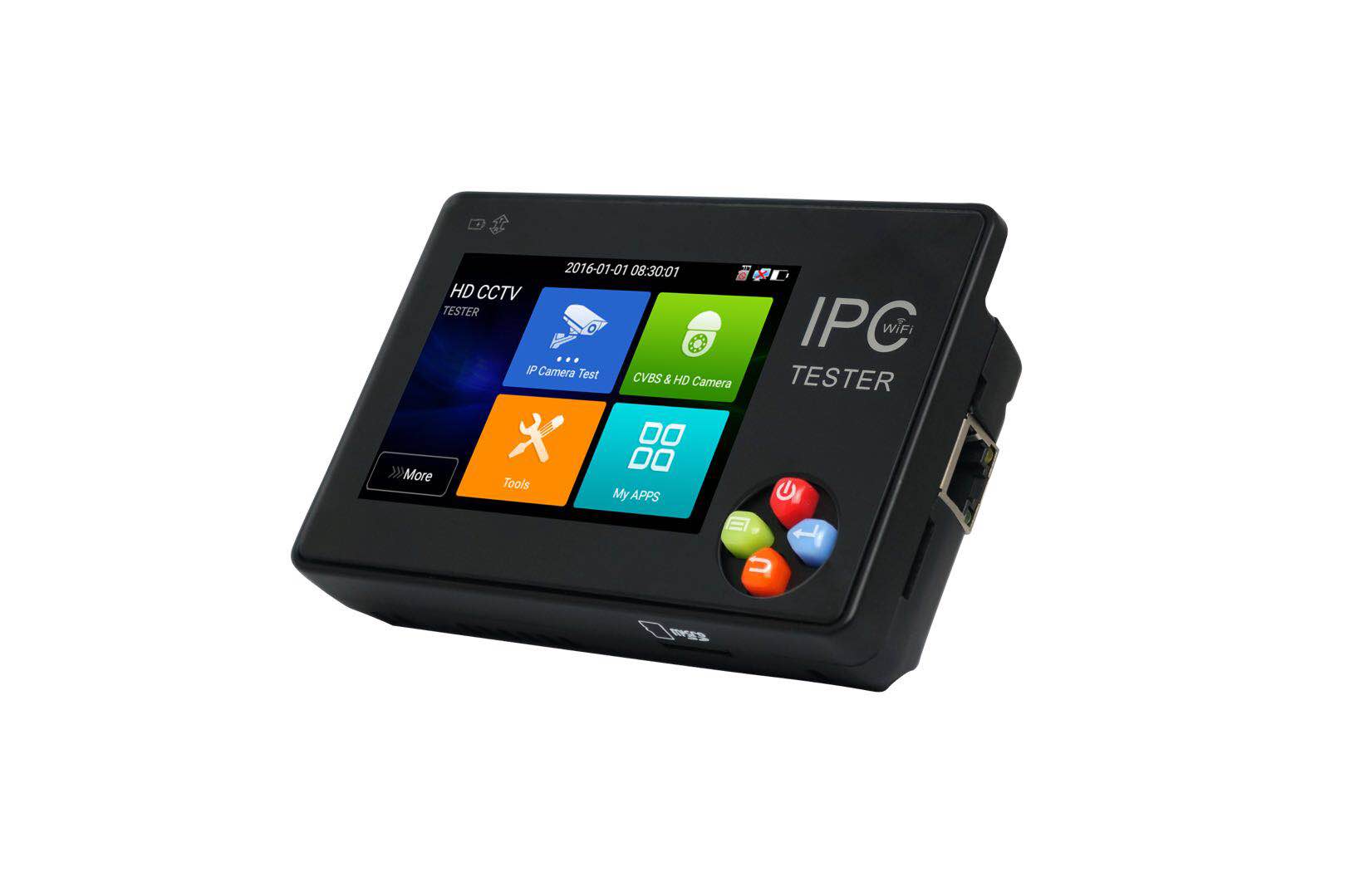

4 in 1 Tester, IP TVI AHD CVI Up to 8MP

  1. 3.5 inch wide angle touch screen,480*320 resolution
  2. New- H.264 and H .265 ,4K video display via mainstream
  3. New- PPPOE Dial test, can connect internet.to PPPOE dial test
  4. IP & CVBS camera test, PTZ controller
  5. New-8MP TVI/8MP CVI/8MP AHD
  6. New- Rapid video, just by one key to detect all network cameras and auto display
  7. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
  8. New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
  9. New- Screen management, change function’s icons order
  10. New-drop-down menu , IP setting, CVBS,LAN info in any interface
  11. TesterPlay(screen projection): tester, android version mobile phone and PC display at the same time
  12. New- Screen lock, password lock and pattern lock are optional
  13. New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
  14. New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
  15. ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)
  16. Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
  17. New- 4K video files and MKV/MP4 media files play
  18. DC 12V /1A power output
  19. IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address
  20. Display its genuine resolution of the IP camera images
  21. PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
  22. PING test ,IP address scan, port flashing etc
  23. Audio in , support record and save the audio/LED lamp, calculators, music players and other application tools

3.7 V /3500mAh Lithium Ion Polymer Battery, after 4~5 hours charging , working time lasts 8 hours

LCDItem series                                                         DSS-TESTERTVIIP
Display New 3.5 inch wide angle touch screen ,480*320 resolution
  Video Mode     CVBS1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP camera test


IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
Rapid VideoAuto view the video, create testing report
Hik test tool pressing just one key to activate hikvision camera ,Image test, can modify the user name, password and IP parameters
Dahua test tool Dahua camera test, modify the user name, password and IP parameters
IP& CVBS testIP& CVBS test at the same time ,converter test from analog to digital with dual test window
Coaxial HD test 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control d call OSD menu
8MP AHD test, 3840 x 2160P 15 FPS, UTC control d call OSD menu


Zoom Image


4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Network Port10/100/1000M auto adapt, RJ45
Power output12V/1A power outputDC 12V 1A power output, supply temporarily power for the camera
TesterPlayscreen projection:tester, mobile phone and PC display at the same time (For android version mobile phone)
Network testTrace route, Link monitor , DHCP server, port flashing , Ping test
Wi-FiBuilt in WIFI,speeds150M,display wireless camera image
Audio test1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor Captures and analyzes the command data from controlling device,also can send hexadecimal
Drop-down menu You can select CVBS ,IP setting, LAN info etc in any interface
External power supplyDC 5V 2A
BatteryBuilt-in 3.7V Lithium polymer battery ,3500mAh
RechargeableAfter charging 3-4 hours, normal working time 8 hours
Operation settingOSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off1-30 (mins)
Working Temperature-10℃---+50℃
Working Humidity30%-90%
Dimension/Weight115mm x 75mm x 33mm / 300g
