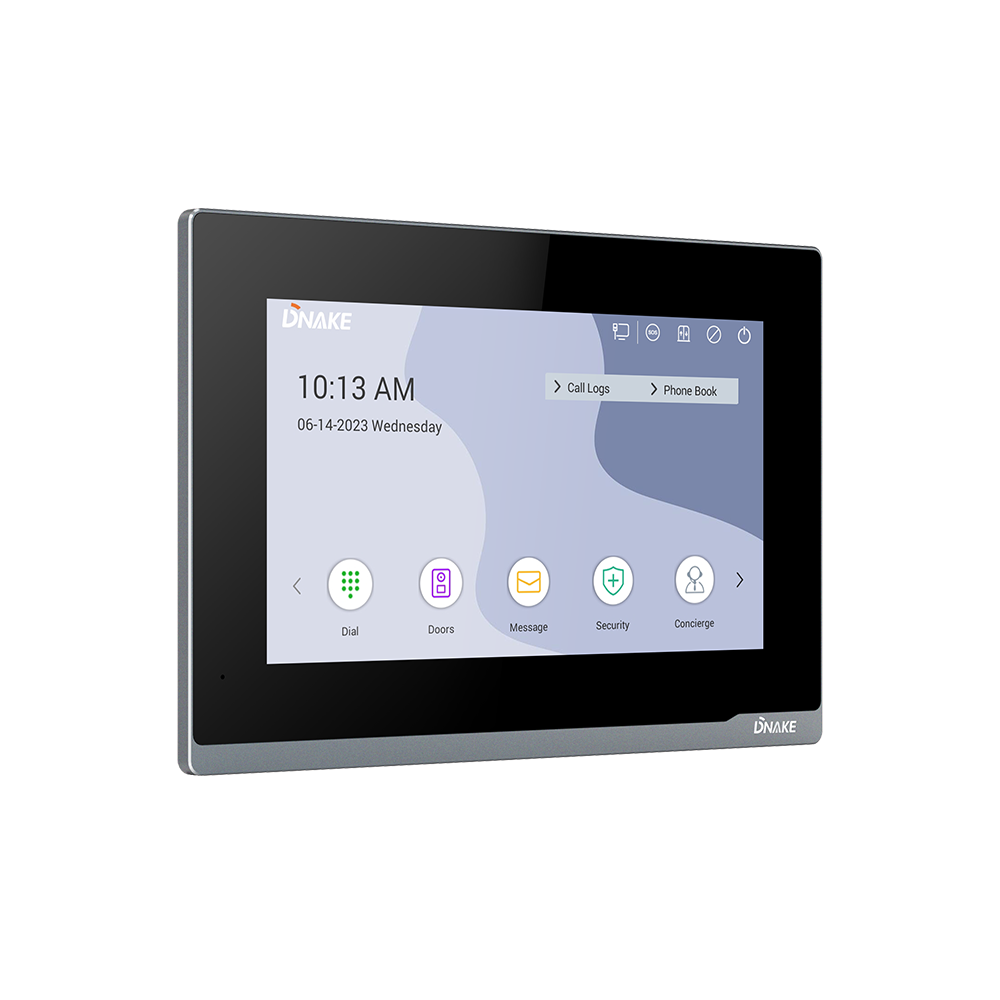

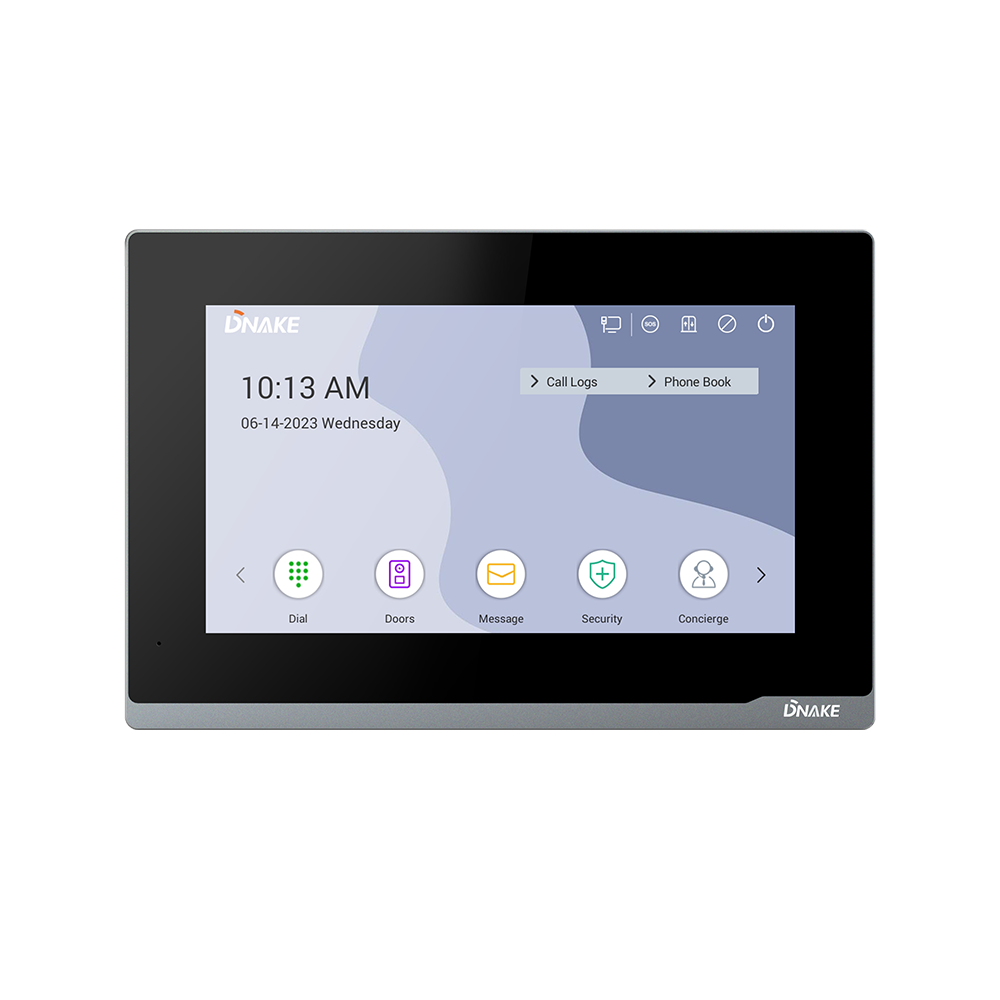

E217-W
2 reviews
WIFI Indoor Station
| Key Features |
| 7-inch capacitive touch screen |
| Powered by PoE or power adapter (DC12V/2A) |
| Support SIP 2.0 protocol, easy integration with other SIP devices |
| Easy integration with elevator control system |
| Support monitoring 8 IP cameras |
| WiFi |
| Physical | |
| System: Linux | RS485: 1 |
| RAM: 64 MB | Power Output: 1 (12V/100mA) |
| ROM: 128 MB | Doorbell Input: 8 (use any alarm input port) |
| Front Panel: Plastic | Alarm Input: 8 |
| Power Supply: PoE (802.3af) or DC 12V/2A | Installation: Surface Mounting / Desktop |
| Standby Power: 1.5 W | Dimension: 195 x 130 x 14.5mm |
| Rated Power: 9 W | Working Temperature: -10℃ to +55℃ |
| Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive | Working Humidity: 10% to 90% (non-condensing) |
| Display | Networking |
| Display: 7-inch TFT LCD | Protocol: SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP |
| Screen: Capacitive touch screen | |
| Resolution: 1024 x 600 | |
| Audio | Package Features |
| Audio Codec: G.711 | Package Content: |
| Echo Cancellation | E217 (Power adapter not included) |
| DTMF: RFC2833 | Bracket |
| Microphone: Built-in microphone | Screwing Kit |
| Speaker: 8Ω / 1W | Quick Start Guide |
| Qty/CTN: 22 pcs | |
| Video | N.W/PCS: 0.473 kg |
| Video Codec: H.26 | G.W/CTN: 13.2 kg |
| Giftbox Size: 236 x 157 x 45 mm | |
| Carton Size: 420 x 360 x 359 mm |
