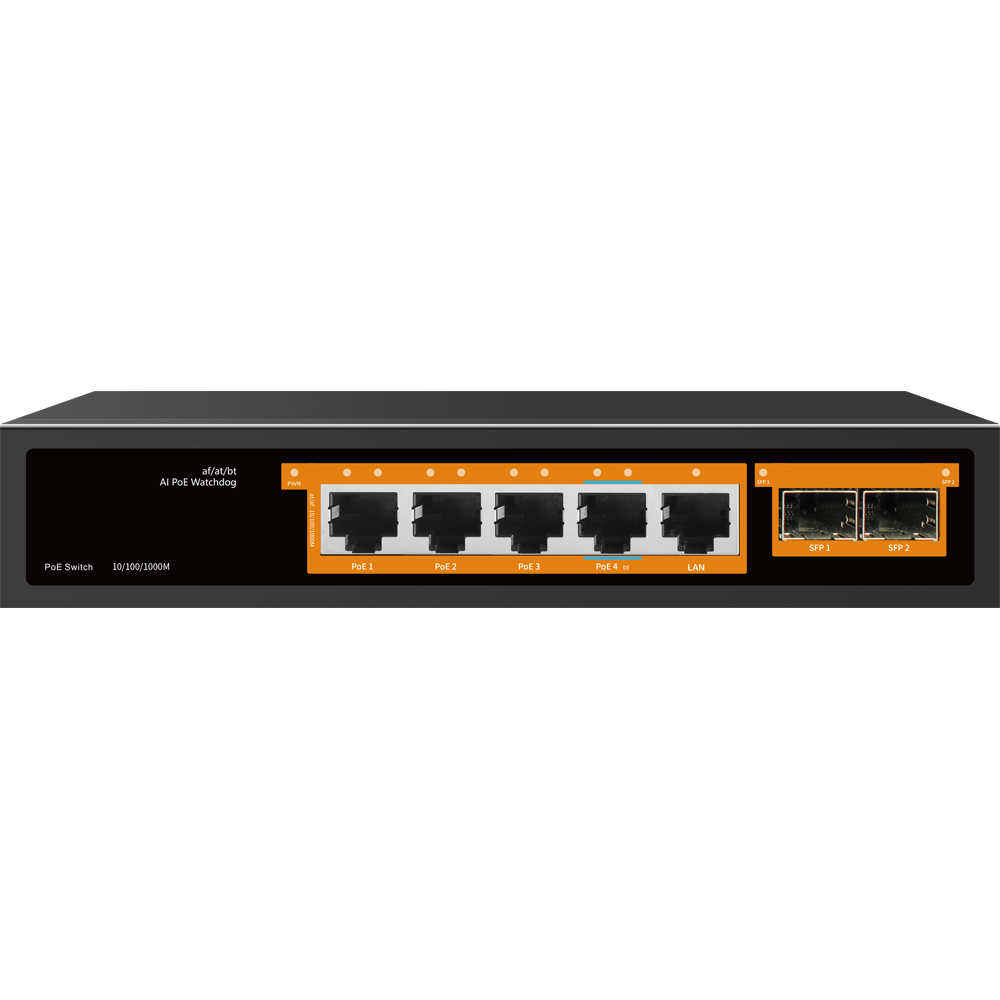

POE-104-AI-GB
2 reviews
"NDAA COMPLIANCE" 4 PORTS POE AI GB SWITCH AUTO RECOVERY
Total 64W
4 Gib POE Ports
1 Gib Uplink
2 SFP Ports
AI Auto Recovery
Auto Power Cut off
| Model |
| POE-104-AI-GB |
| Ports |
| PoE(1-3):10/100/1000Mbps PoE ports (RJ45)PoE (4):10/100/1000Mbps PoE port (RJ45),Support bt 60w High PowerLAN:10/100/1000Mbps uplink port (RJ45)SFP(1~2):10/100/1000Mbps SFP port |
| Transmission Rate |
| 2000Mbps Full Duplex:10 or 100 or 1000 Mbps Half Duplex |
| Transmission Distance |
| 1000Mbps /10Mbps ,Auto-Adaption 250m |
| PerformanceSpecification |
| Bandwidth: 14Gbps |
| Network Latency(1000Mbps):=16us (use the 64byte package size) |
| MAC address table: 2K |
| The Frame Filter & Transmission Rate: 14800pps the most for 10M port148800pps the most for 100M port;1488000pps the most for 1000M por |
| Networking Standard |
| IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX |
| EEE 802.3ab 1000BASE.T |
| IEEE 802.3x Flow Control |
| EEE802.3afatbt Power over Ethernet |
| Power Support |
| Power Input: AC 90-240V Total≤65WAl Watchdog: Port 1~4 |
| Power Output: PoE1-3 Port:1/2(+52V).3/6(GND)≤30WPoE 4 Port:1245(+53V),3678(GND) Compatible1/2(+52V),3/6(GND)≤60W |
| Protection Level |
| Lightning Protection:6KV ESD Protection:8KV |
| Physical Specifications |
| Size(L'W*H): 190mm*80mm*36mm, Weight: 0.5KG |
| WorkingEnvironment |
| Operating Temperature:-30°C-60°C |
| Storage Temperature:-40-C-70°C |
| Operating Humidity:10%-90% Non-condensing |
| Storage Humidity:5%-90% Non-condensing |
| Certification |
| CE FCC RoHS 2.0 |
