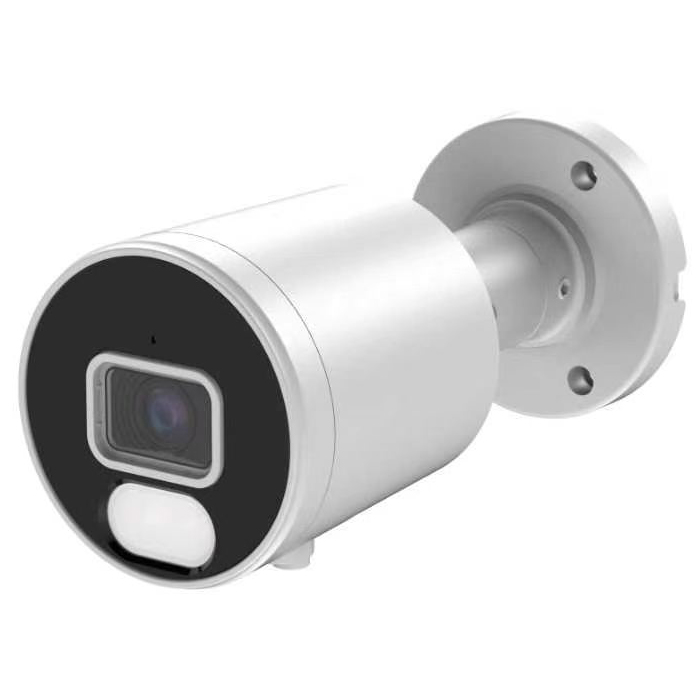

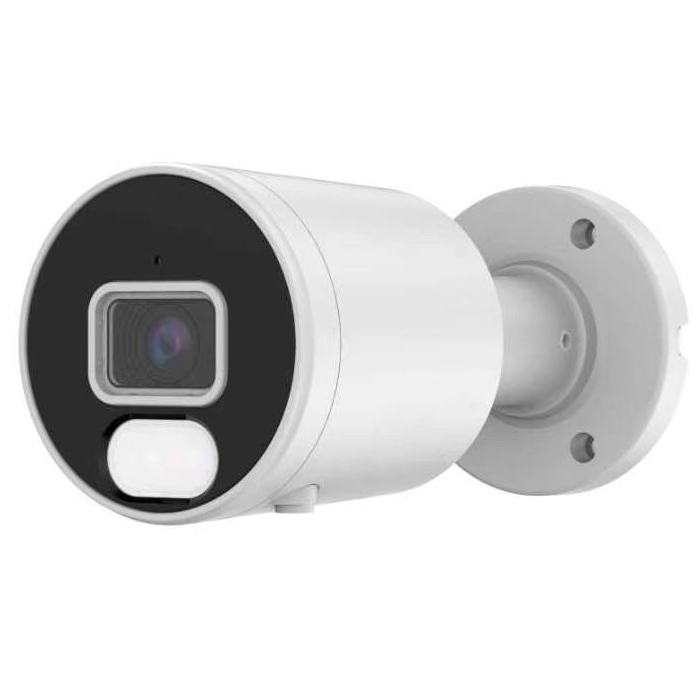

IPC-QBFR2MP-AI-WL
2 reviews
"NDAA COMPLIANCE" 2MP IP FULL COLOR IR MINI BULLET POE CAMERA
● 2 Megapixel 1080P
● HD Video Output
● H.265+ H.264+ Ready, H.264. MJEPG
● 3D DNR, BLC, WDR, ICR
● IR Range: Up to 100 ft, Full Color
● Dual Video Streams
● IP66 Rating
● Metal housing & Bracket
● True Day/Night
| IPC-QBFR2MP-AI-WL | |||||||||||
| Video | |||||||||||
| Imaging Device | 1/3" | ||||||||||
| Effective Pixels | 2MP 1920(H)×1080(V) | ||||||||||
| Scanning System | Progressive CMOS | ||||||||||
| Min. Illumination | Color 0.008lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON | ||||||||||
| Lens Type | |||||||||||
| Focal Length (Zoom Ratio) | 2.8mm | ||||||||||
| Max. Aperture Ratio | F No. 1.6 | ||||||||||
| Angular Field of View | Horizontal:97° , Vertical:53°, Diagonal: 115° | ||||||||||
| Min. Object Distance | 2m | ||||||||||
| Lens Type | Fixed(M12) | ||||||||||
| Operational | |||||||||||
| IR LED | 1 | ||||||||||
| WarmLight | 2 | ||||||||||
| IR Viewable Length | Up to 25m | ||||||||||
| WarmLight Viewable Length | Up to 20m | ||||||||||
| Type of complementary light | Default warm light, switchable infrared light | ||||||||||
| Motion Detection | Off/On (8 Level) | ||||||||||
| Wide Dynamic Range | DWDR | ||||||||||
| Digital Noise Reduction | 3D DNR | ||||||||||
| Image Seting | Full Color Mode / Day&Night Mode / Smart IIIumination | ||||||||||
| White Balance | Auto/Manual | ||||||||||
| Electronic Shutter Speed | 1/5 ~ 1/20000s | ||||||||||
| On-Board Storage | Micro SD slot, up to 256GB | ||||||||||
| Alarm | NA | ||||||||||
| Audio | Built-in microphone | ||||||||||
| Hardware Reset | Yes | ||||||||||
| Smart Feature | SMD (Pedestrian&Vehicle) /Perimeter Intrusion / Line Crossing/Intrusion/Region Entrance/Region Exittng | ||||||||||
| Network | |||||||||||
| Ethernet | RJ45(10/100BASE-T) | ||||||||||
| Video Compression Format | H.265/H.264 | ||||||||||
| Resolution | Mainstream@25fps 2MP(1920x1080) Substream@25fps VGA(640x480) | ||||||||||
| Video Quality Adjustment | 512Kbps ~ 2Mbps | ||||||||||
| Bitrate control method | CBR/VBR | ||||||||||
| IP | IPV4 | ||||||||||
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,HTTPS | ||||||||||
| Security | IP address filter; complicated password; Authen cated username and password | ||||||||||
| Applica on Programming Interface | ONVIF | ||||||||||
| Web Viewer | IE10/11 | ||||||||||
| Environmental | |||||||||||
| Operating Conditions | -35~+60°C / less than 90% RH | ||||||||||
| Ingress Protection | IP67 | ||||||||||
| Electrical | |||||||||||
| Input Voltage / Current | D12V/POE(IEEE802.3af) | ||||||||||
| Power Consumption | DC12V: max 5.5W; POE(48V): max 6.8W | ||||||||||
| Mechanical | |||||||||||
| Material | Metal | ||||||||||
