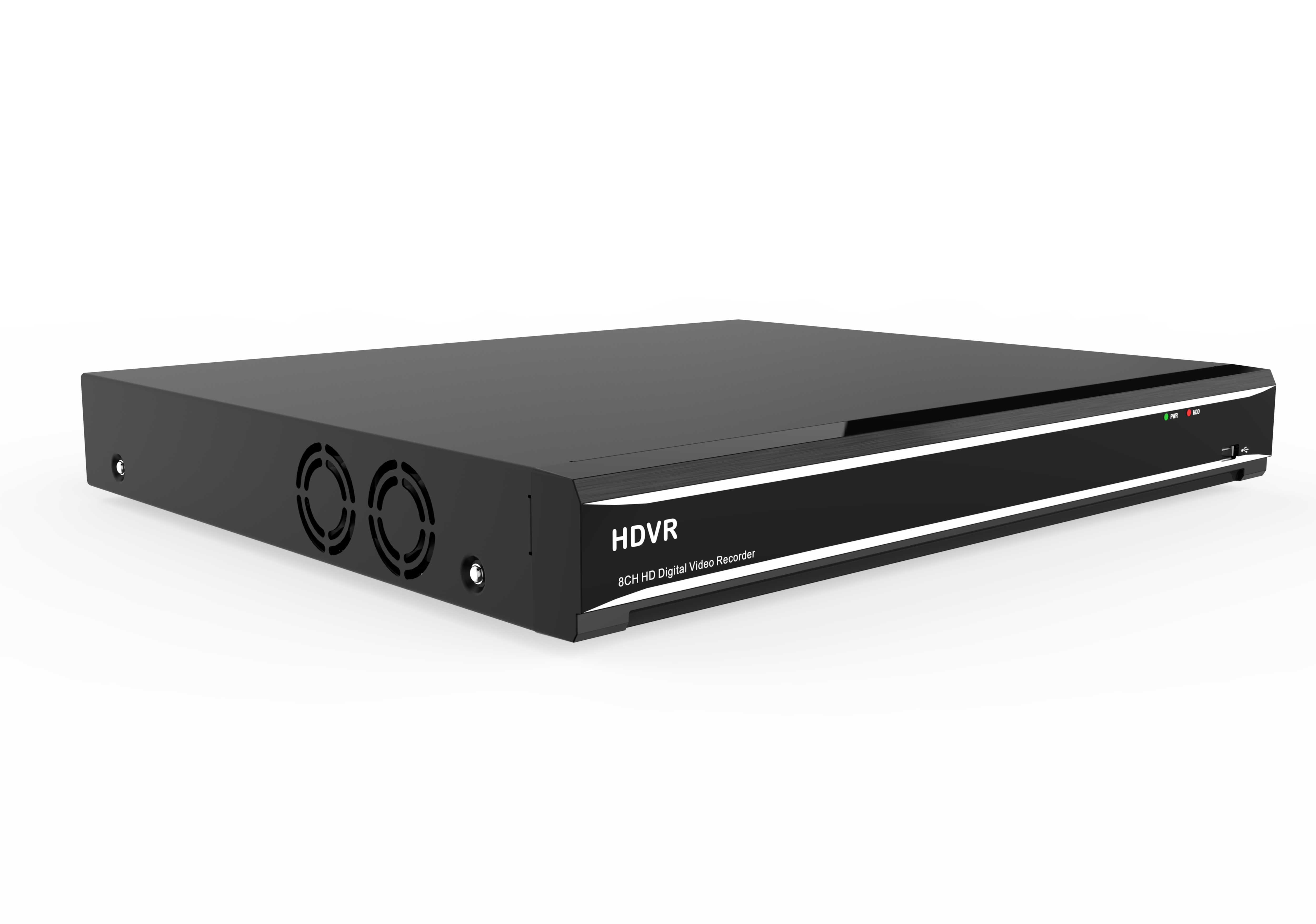

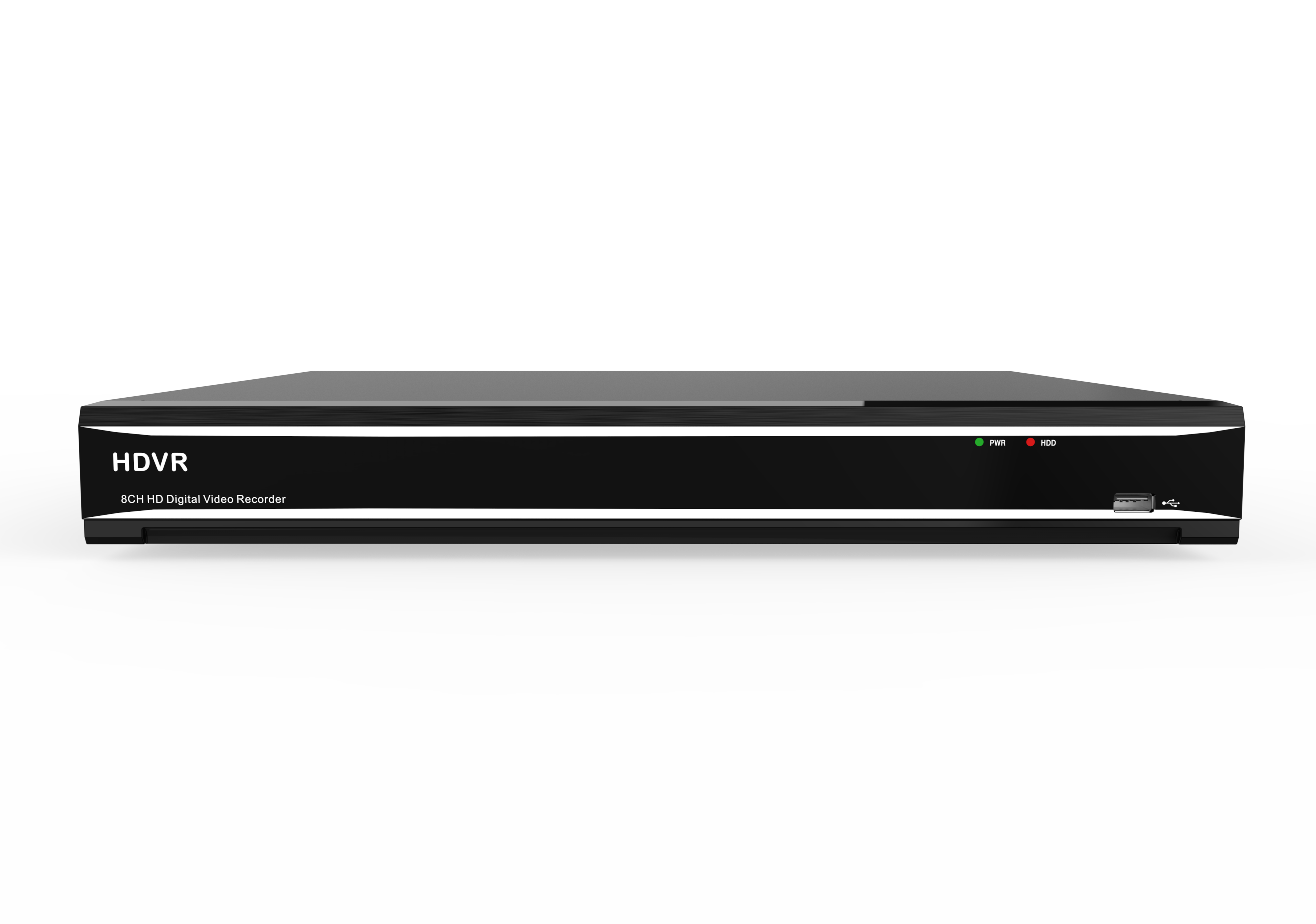

LHDVR0808-4K-AI

2 reviews

"NDAA COMPLIANCE" 8 CHANNELS HD 8MP AI 4K TVI DVR

Categories:

● H.265+/H.265/H264+/H.264 Main Stream Encoding

● Full Channel Recording up to 8MP 4K Resolution

● Support HD-TVI/Analog/AHD/HDCVI/IP camera hybrid

● Self-Adaptive HD-TVI/CVBA Analog Singal Input

● HDMI Output Up to 4K 3840 x 2160 Resolution

● VGA Output Up to 1920x1080 Resolution

● Long transmission distance over coax cable

● Full Channel Synchronous Playback

● Support Cloud storage(One Drive, Google Drive or Drop Box)

● IPC Support up to 12-ch

● RXCAMVIEW Android/iPhone

● 8-ch Audio Recording

Technical Specifications
Model No.LHDVR0804-4K
Video/Audio input
Video compressionH.264,H.264+, H.265, H.265+
Video input8-ch Analog, 4-ch IP or 12-ch IP
Video input interfaceBNC (1.0 Vp-p, 75 Ω)
Supported Camera Types8MP/5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Audio compression G.711u
Audio input8-ch
Audio input interfaceRCA (2.0 Vp-p, 1 kΩ)
Video /Audio output
HDMI output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60Hz, 1024 ×768/60 Hz
VGA output1-ch, resolution: 1920×1080P / 60Hz, 1280×1024 / 60Hz, 1280×720 / 60Hz, 1024×768 / 60Hz
CVBS Output1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Recording resolution4K Model: Analog : 8MP(15fps) 5MP(20fps) 4MP/3MP/1080P/720P/960H (30fps) IP : 8MP/5MP/3MP1080P/720P
Frame rateMain stream:25fps(p)/30fps(N) Sub-sream:WD1/4CIF@12fps(non-real-time);CIF/QVGA/QCIF(real-time)
Video bit rate32 Kbps-10 Mbps
Audio output 8-ch, RCA (Linear, 1 kΩ)
Audio bit rate64 Kbps
Dual-streamSupport
Stream typeVideo, Video & Audio
Synchronous playback8-ch
Playback Resolution8MP/5MP/3MP/1080P/720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
Remote Connections128
Network ProtocolsTCP/IP, PPPoE, DHCP, Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk
SATA2 SATA interface
CapacityUp to 24TB capacity
External interface
Network interface1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface1; standard RS-485 serial interface, half-duplex
USB interface1x USB2.0, 1x USB3.0
General
Power supply12V DC
Consumption≤ 20 W
Working temperature-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity10% ~ 90%
Chassis1U chassis
Dimensions 15 x 12 1/2 x 2
Weight≤ 1.5Kg (3.3lb)
