DFRT-5MP36

2 reviews

Discontinued

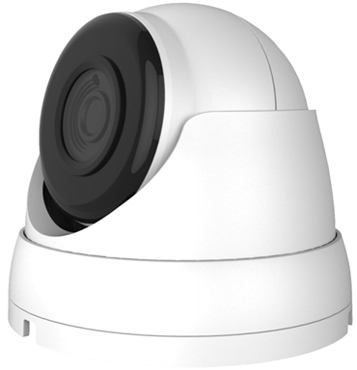

2.8 MM HD 5MP TVI DAY/NIGHT WEATHERPROOF IR FIXED LENS DOME CAMERA

● 5 MP CMOS image sensor

● High Performance 5MP Resolution

● Compatible with 5MP TVI, 4MP TVI, Analog

● UTC, OSD, WDR, 3D DNR, Smart IR

● 3.6mm Fixed Lens

● 20 Built in IR LEDs, (75 Ft. Night Vision)

● Vandal Resistant IP66 Weatherproof

● True Day/Night

● 3 Years Warranty

Technical Specifications
Model No.DFRT-5MP36
Camera
Image sensor5 MP CMOS image sensor
Min. illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter time 1 / 25 s to 1 / 50,000 s
Lens 3.6mm Angle of View: 80.9°
Lens mountM12
Day & night ICR
Digital noise reduction3D DNR
Wide dynamic rangeDWDR
SynchronizationInternal synchronization
HD Video Output1 Analog HD ouput Yellow
VideoCompatible with 5MP TVI, 4MP TVI, Analog
S/N RatioMore than 52dB
Max. Image Resolution2592 (H) × 1944 (V)
Signal SystemNTSC
Frame rate5MP@20fps
Image settingsSaturation, brightness, contrast, sharpness adjustable through client software or web browser
BLCSupported
General
Operating conditions(-22°F ~ 140 °F) humidity 90% or less (non-condensing)
Power supply12 VDC
Power consumptionMax. 4W
Weather proof ratingIP66
IR rangeUp to 75ft
Dimension 90×100 mm
Weight 360 g (0.79 lb)
