IPC-DVR4MP-Z
2 reviews

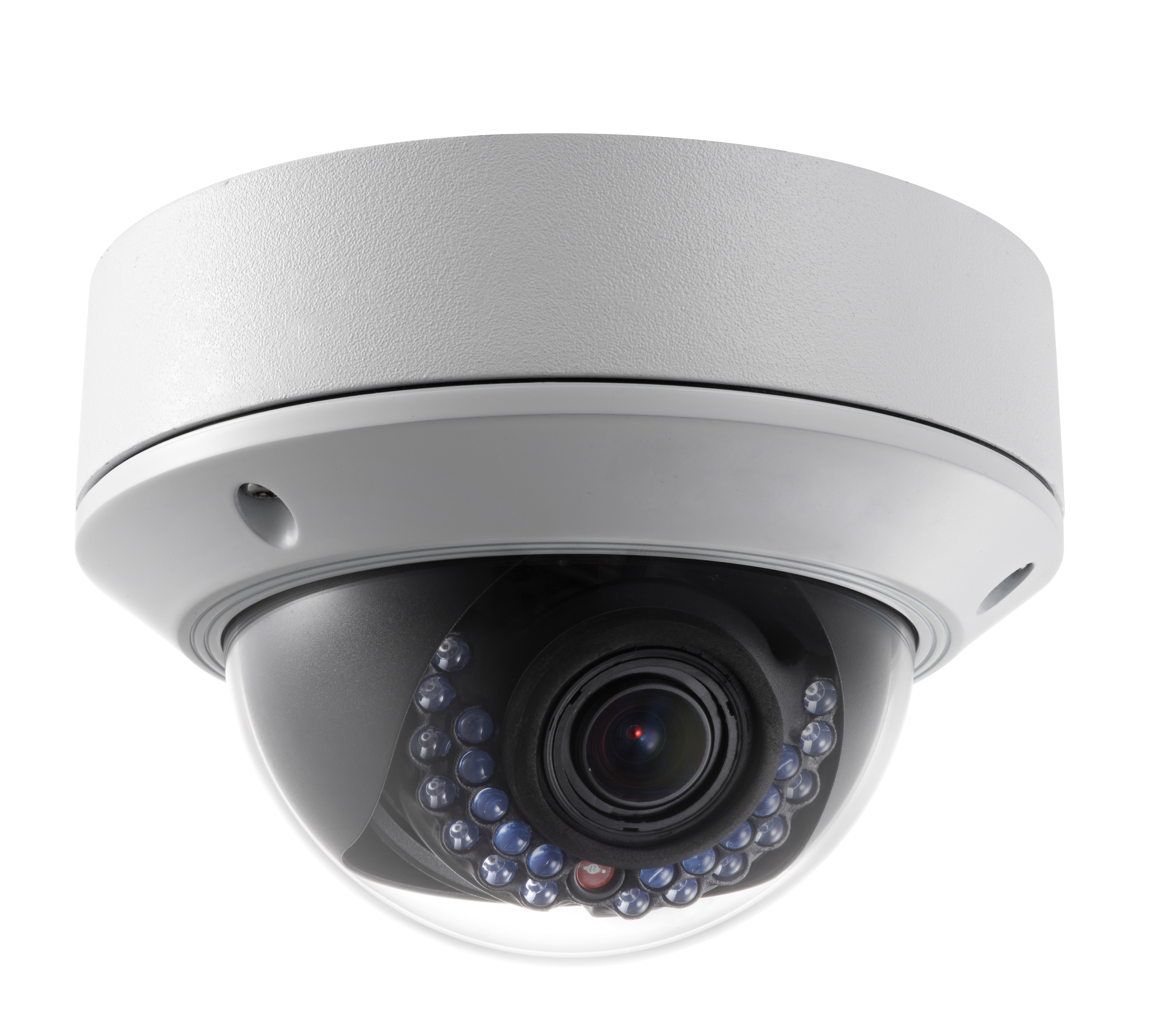

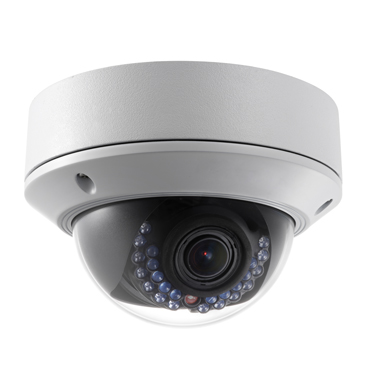

4MP MOTORIZED VARIFOCAL IR WDR VANDAL PROOF DOME IP CAMERA
● 4.0 Megapixel High Resolution
● HD Video Output
● H.264+ Ready, H.264. MJEPG
● 120 dB True WDR
● 3D DNR, BLC
● IR Range: Up to 100 ft
● Dual Video Streams
● IP66 Rating, Vandal Proof
● Metal housing & Bracket
● True Day/Night
| Technical Specifications | |
| Model No. | IPC-DVR4MP-Z |
| Camera | |
| Image sensor | 1/3” progressive scan CMOS |
| Min. illumination | 0.01 lux @F1.2, AGC ON, 0 lux with IR |
| Shutter time | 1/3s ~ 1/10,000s |
| Lens | Motorized Lens 2.8 ~ 12mm @ F1.4, Angle of view: 92.2° ~ 30.5° |
| Lens mount | M12 |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | 120dB True WDR |
| Compression Standard | |
| Video compression | H.264 / MJPEG / H.264+ |
| H.264 codec profile | Main profile |
| Bit rate | 32 Kbps ~ 16 Mbps |
| Dual streams | Support |
| Image | |
| Max. Image Resolution | 2688x1520 4MP |
| Frame rate | 60Hz: 20fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 x 720) |
| Image settings | Rotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse |
| BLC | Yes, zone configurable |
| ROI Codec | Support |
| Network | |
| Network storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Interoperability | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Security | User Authentication, watermark |
| Interface | |
| Communication interface | 1 RJ45 10 M / 100 M Ethernet interface |
| Web Browser | IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 + |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | DC12V ± 10% , PoE (802.3af) |
| Power consumption | Max. 5.5W |
| Weather proof rating | IP66 |
| IR range | Up to 100 ft |

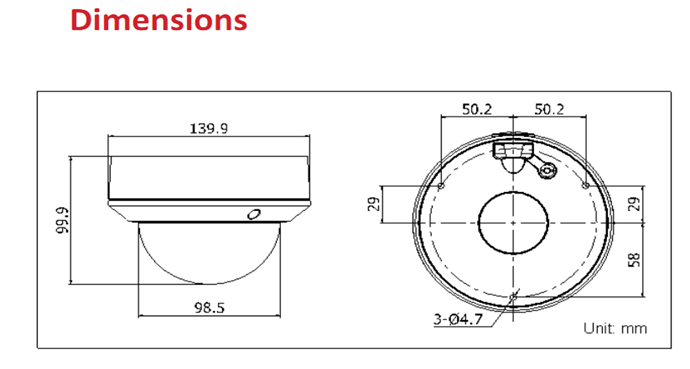

| Dimension | 5.51" x 3.94" |
| Weight | 2.2 lbs |
