IPC-BFR4MPEX

2 reviews

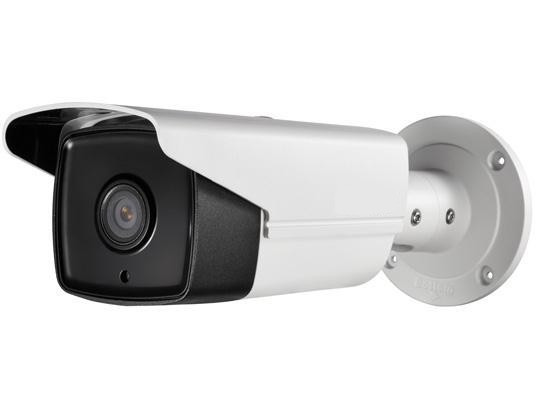

4MP EXIR Bullet WDR Network Camera

Categories:

● 4.0 Megapixel High Resolution

● HD Video Output

● H.264+ Ready, H.264. MJEPG

● 120 dB True WDR

● 3D DNR, BLC

● IR Range: Up to 170 ft, EXIR

● Dual Video Streams

● IP66 Rating

● Metal housing & Bracket

● True Day/Night

Technical Specifications
Model No.IPC-BFR4MPEX
Camera
Image sensor1/3” progressive scan CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR
Shutter time 1/3s ~ 1/10,000s
Lens 4mm @F2.0 Angle of view: 82°
Lens mountM12
Day & night IR cut filter with auto switch
Digital noise reduction3D DNR
Wide dynamic range120dB True WDR
Compression Standard
Video compressionH.264 / MJPEG / H.264+
H.264 codec profileMain profile
Bit rate32 Kbps ~ 16 Mbps
Dual streamsSupport
Max. Image Resolution2688x1520 4MP
Frame rate60Hz: 30fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 x 720)
Image settingsRotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse
BLCYes, zone configurable
ROI CodecSupport
Network
Network storage NAS (Support NFS,SMB/CIFS), ANR
Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Interoperability ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Security User Authentication, watermark
Interface
Communication interface1 RJ45 10 M / 100 M Ethernet interface
Web BrowserIE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
General
Operating conditions(-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumptionMax. 7W (9W with ICR on)
Weather proof ratingIP66
IR rangeUp to 170 ft, EXIR
Dimension 100.5 x 88.1 x 157.3 mm
Weight 1.5 lbs
