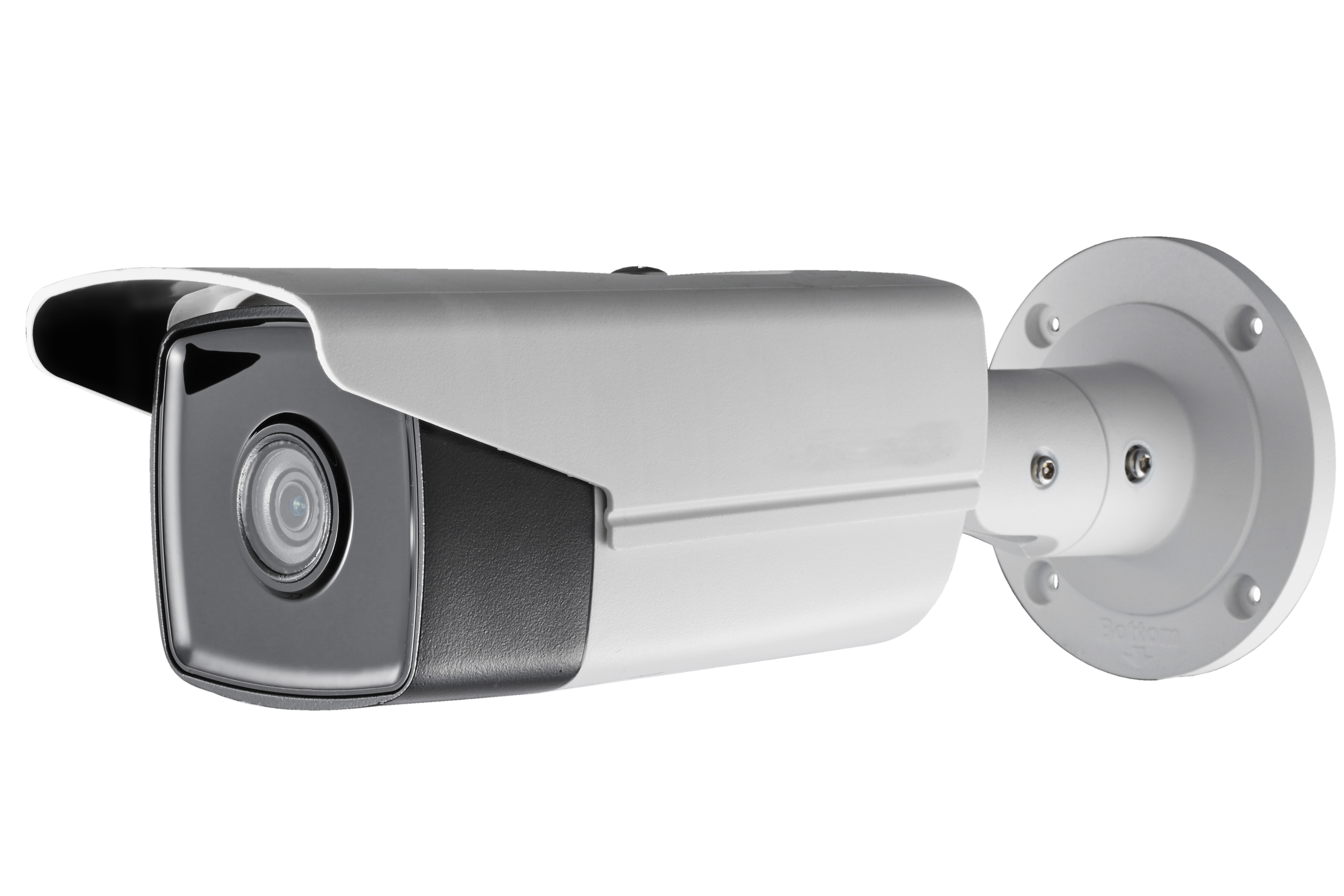

IPC-BFR4KEX

4K 8MP EXIR Bullet WDR Network Camera

Categories:

DSS-H IP → DSS-H IPC

● 8.0 Megapixel High Resolution

● HD Video Output

● H.265+ H.264+ Ready, H.264. MJEPG

● 120 dB True WDR

● 3D DNR, BLC

● IR Range: Up to 100 ft

● Dual Video Streams

● IP66 Rating

● Metal housing & Bracket

● True Day/Night

Technical Specifications
Model No.	IPC-BFR4KEX
Camera
Image sensor	1/3” progressive scan CMOS
Min. illumination	0.01 lux @F1.2, AGC ON, 0 lux with IR
Shutter time	1/3s ~ 1/10,000s
Lens	2.8mm @F2.0 Angle of view: 109°
Lens mount	M12
Day & night	IR cut filter with auto switch
Digital noise reduction	3D DNR
Wide dynamic range	120dB True WDR
Compression Standard
Video compression	H.264 / MJPEG / H.264+
H.264 codec profile	Main profile
Bit rate	32 Kbps ~ 16 Mbps
Dual streams	Support
Max. Image Resolution	2688x1520 4MP
Frame rate	60Hz: 30fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 x 720)
Image settings	Rotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse
BLC	Yes, zone configurable
ROI Codec	Support
Network
Network storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm trigger	Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Interoperability	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Security	User Authentication, watermark
Interface
Communication interface	1 RJ45 10 M / 100 M Ethernet interface
Web Browser	IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
General
Operating conditions	(-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply	12 VDC ± 10% , PoE (802.3af)
Power consumption	Max. 7W (9W with ICR on)
Weather proof rating	IP66
IR range	Up to 170 ft, EXIR
Dimension	100.5 x 88.1 x 157.3 mm
Weight	1.5 lbs
