IPC-FIS-8MP-S
2 reviews

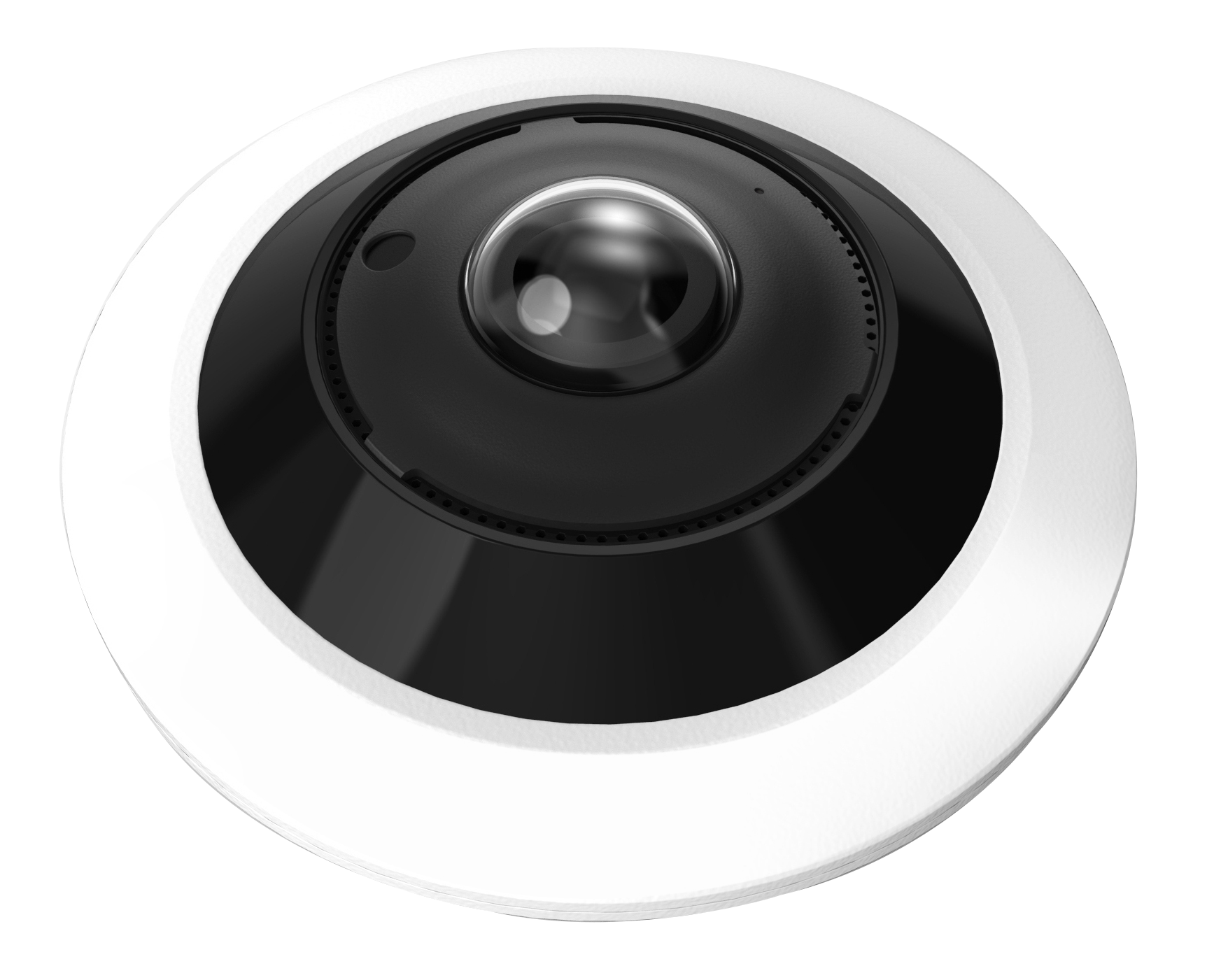

"NDAA COMPLIANCE" 9MP Fish Eye IP Camera Two Way Audio Built in
● 1/2.9“ Progressive Scan CMOS
● HD 9MP Video Output
● Up to 3000x3000
● 0.98mm Angle of view: 360°
● Night Vision up to 20 Feet
● Vandal Resistant IP66 Weatherproof
● True Day/Night
● 3 Years Warranty
| Technical Specifications | |
| Model No. | IPC-FIS-8MP-S |
| Camera | |
| Image sensor | 1/2.9” progressive scan CMOS |
| Min. illumination | 0.3 lux @ (F2.8, AGC ON ) 0 lux with IR |
| Shutter time | 1/25s ~ 1/100,000s |
| Lens | 1.1mm @F2.8, angle of view: 360° |
| Lens mount | M12 |
| Slow Shutter | Support |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | Digital WDR 120dB |
| Compression Standard | |
| Video compression | H.265/ H.264 / MJPEG |
| H.264 codec profile | Main profile |
| Bit rate | 32 Kbps ~ 8 Mbps |
| Image | |
| Max. Image Resolution | 3000 x 3000, 9 Megapixel |
| Frame rate | High-frame Mode: support 60Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 30fps) or 4 x PTZ at (1024 x 768, 30fps) Multi-channel Mode: support 60Hz: 1 x fisheye (1280 x 1280, 15fps) and 1 x panoramic (2048 x 1536, 15fps) and 3 x PTZ (1024 x 768, 15fps |
| Image settings | Saturation, brightness, contrast, sharpeness adjustable through client software or web browser |
| BLC | Yes, zone configurable |
| High Light Compensation | Support |
| Privacy Mask | On/Off, Maximum 8 Zones |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | Support |
| Anti-Flicker | On/Off |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutt er, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Network | |
| Network storage | NAS (iSCSI optional) |
| Alarm trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception, dynamic analysis |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional) |
| Interoperability | ONVIF, PSIA, CGI |
| Security | User Authentication, watermark |
| Interface | |
| Communication interface | 1 RJ45 10 M / 100 M Ethernet interface |
| Web Browser | IE 7, IE 8, IE 9 |
| Audio Input | 1-ch 3.5 mm audio interface, Mic in/Line in. built-in Microphon |
| On-board storage | Built-in Micro SD/SDXC slot, up to 64 GB |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | DC12V ± 10% , PoE (802.3af) |
| Power consumption | Max. 11W |
| Weather proof rating | IP66 |
| IR range | Up to 20 ft |
| Dimension | 4.7” x 4.7” x 2.17”) |
| Weight | 400g |
