IPC-QBFR8MP-AI(II)-S
2 reviews

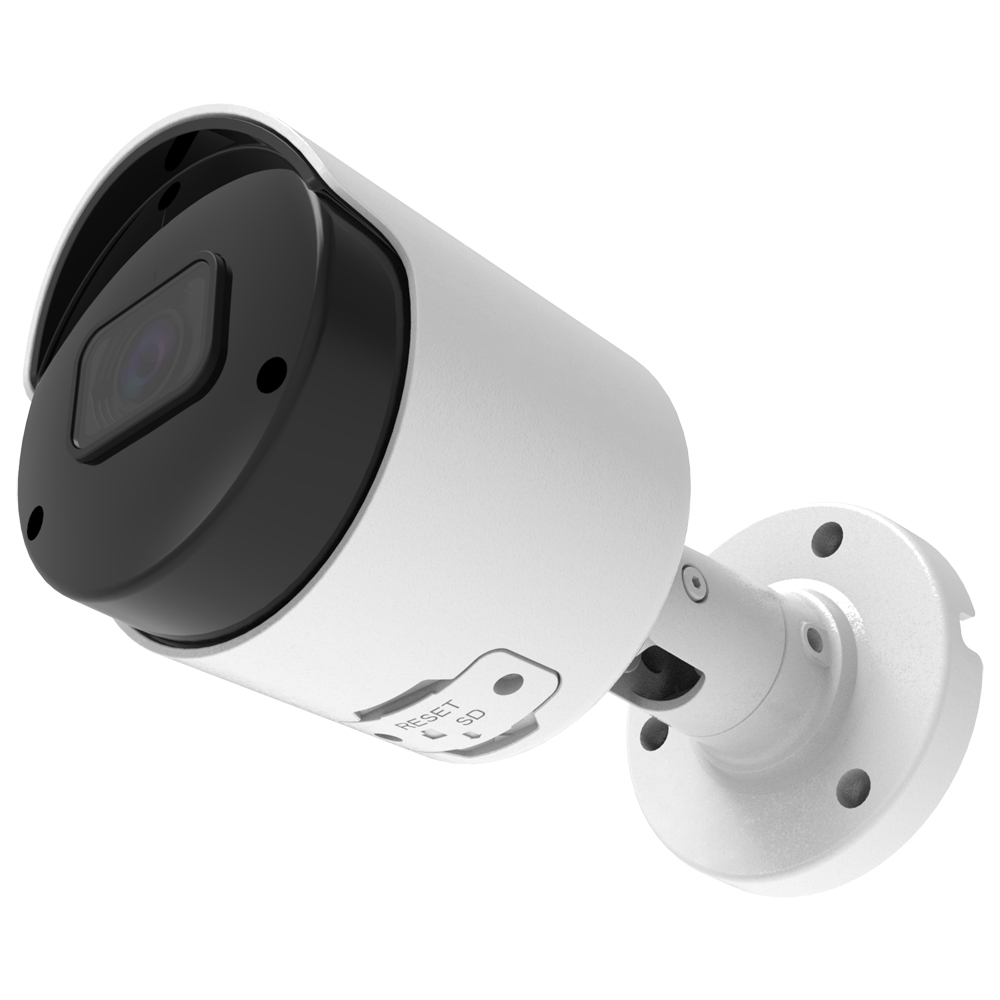

"NDAA COMPLIANCE" 8MP 4K IP AI+ IR TRUE DAY & NIGHT MIC MINI BULLET POE CAMERA
● 8MP 3840(H)×2160(V)
● HD Video Output
● H.265+ H.264+ Ready, H.264. MJEPG
● Built in MIC, 3D DNR, BLC, WDR, ICR SD Slot Up to 128GB
● IR Range: Up to 100 ft
● Dual Video Streams
● IP66 Rating
● Metal housing & Bracket
● True Day/Night
● AI+ Include Facial Detection, Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Crossing Count
| Technical Specifications | |
| Model No. | IPC-QBFR8MP-AI(II)-S |
| Camera | |
| Image sensor | 1/2.5" Progressive CMOS |
| Min. illumination | Color 0.009lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| Shutter time | 1/3s ~ 1/10,000s |
| Lens | 2.8mm @F2.0 Angle of view: 109° |
| Lens mount | M12 |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | WDR |
| Compression Standard | |
| Video compression | H.264 / MJPEG / H.264+/H.265+ |
| H.264 codec profile | Main profile |
| Bit rate | 32 Kbps ~ 16 Mbps |
| Dual streams | Support |
| Image | |
| Max. Image Resolution | 8MP 3840(H)×2160(V) |
| Frame rate | 60Hz:(1~15fps@4K, default 15fps@4K 8MP (3840x2160),5MP(3072*1728)(2592*1944),4MP(2592x1520),3MP(2304x1296), 1080P(1920x1080), 720P(1280x720), |
| Image settings | Rotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse |
| BLC | Yes, zone configurable |
| ROI Codec | Support |
| Network | |
| Network storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Interoperability | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Security | User Authentication, watermark |
| Interface | |
| Communication interface | 1 RJ45 10 M / 100 M Ethernet interface |
| Web Browser | IE 7, IE 8, IE 9 |
| P2P Connection | Built in |
| Mic | Built in |
| Mobile App | RXCAMVIEW Android/iPhone |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | 12 VDC ± 10% , PoE (802.3af) |
| Power consumption | Max. 5W (Max 7W with IR cut filter on) |
| Weather proof rating | IP66 |
| IR range | Up to 100 ft |
| Dimension | 4.33" x 3.88" x 4.33" |
| Weight | 1.1 lbs |
