IPC-EDFR5MP-TD-AI(II)-S

2 reviews

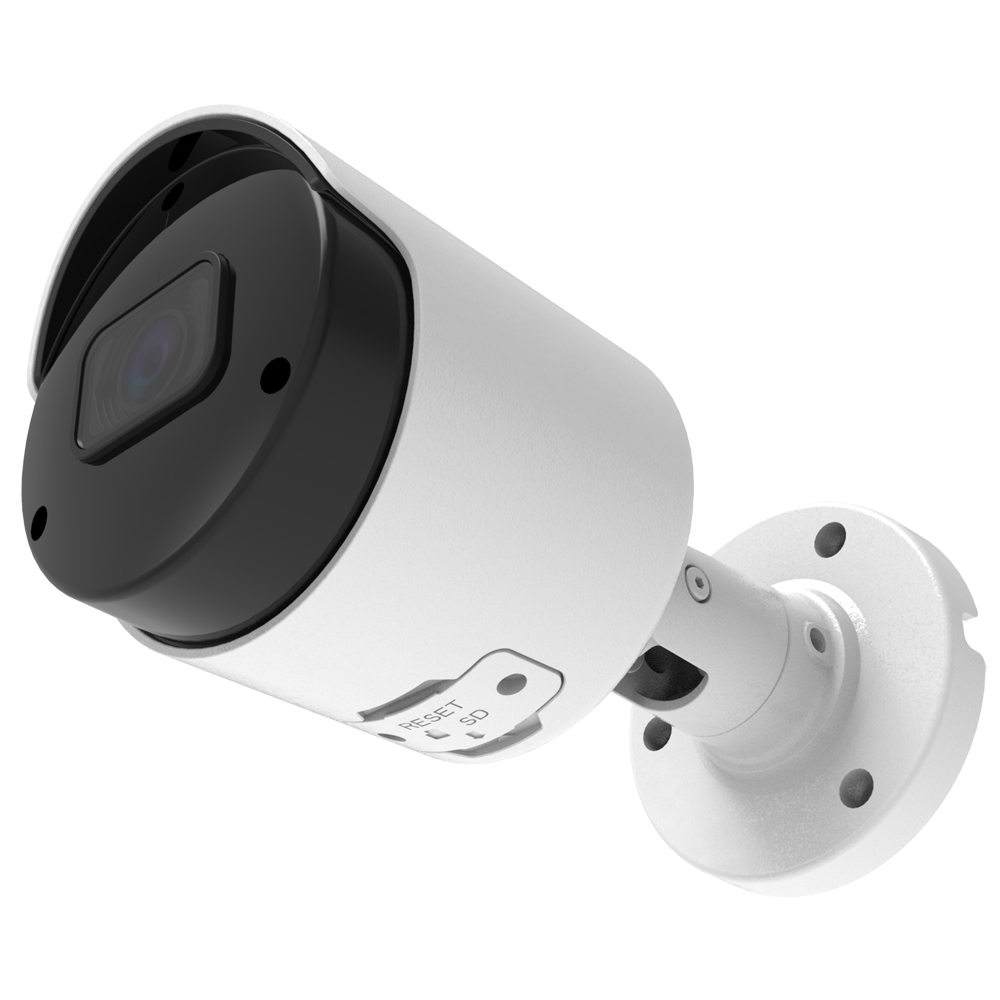

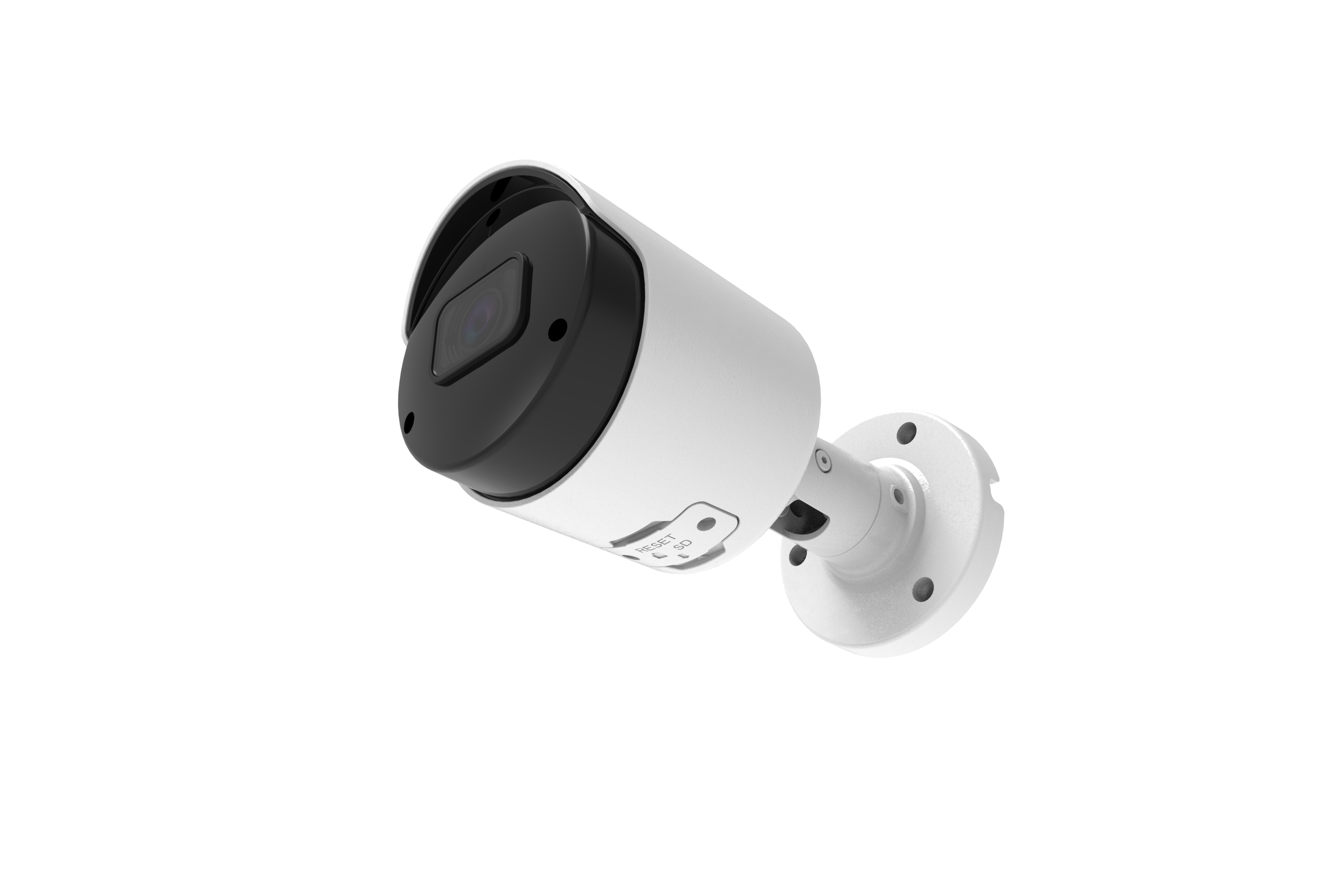

5MP IP AI+ TRUE COLOR MINI BULLET POE CAMERA

Categories: Uncategorized

● 5MP 2592(H)×1944(V)

● Second Gen AI True Color Night

● H.265+ H.264+ Ready, H.264. MJEPG

● 3D DNR, BLC, WDR, ICR

● Built-in microphone

● Dual Video Streams

● IP66 Rating

● Metal housing & Bracket

● True Day/Night

● AI+ Include Face Recognition(FR) Human & Vehicle Detection(PD&VD) Perimeter Intrusion Detection(PID) Line Crossing Detection(LCD) Cross Counting(CC) Stationary Object Detection(SOD) Heat Map(HM) Crowd Density Detection(CD) Queue Length Detection(QD) License Plate Detection(LPD) Rare Sound Detection(RSD)

Technical Specifications
Model No.IPC-EBFR5MP-AI(II)-S
Camera
Image sensor1/2.7" Progressive CMOS
Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR
Shutter time 1/3s ~ 1/10,000s
Lens 2.8mm @F2.0 Angle of view: 109°
Lens mountM12
Day & night IR cut filter with auto switch
Digital noise reduction3D DNR
Wide dynamic rangeTrue WDR
Compression Standard
Video compressionH.264 / MJPEG / H.264+/H.265+
H.264 codec profileMain profile
Bit rate32 Kbps ~ 16 Mbps
Dual streamsSupport
Max. Image Resolution5MP 2592(H)×1944(V)
Frame rate60Hz: (1~30fps)5MP(2592×1944),4MP(2592x1520) 3MP(2048x1520),1080P(1920x1080) 960P(1280x960), 720P(1280x720)
Image settingsRotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse
BLCYes, zone configurable
ROI CodecSupport
Network
Network storage NAS (Support NFS,SMB/CIFS), ANR
Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Interoperability ONVIF (PROFILE S, T, G), PSIA, CGI, ISAPI
Security User Authentication, watermark
Interface
Communication interface1 RJ45 10 M / 100 M Ethernet interface
Web BrowserIE CHORME FIREFOX SAFARI
P2P ConnectionBuilt in
Mobile AppRXCAMVIEW Android/iPhone
MICBuilt-in
General
Operating conditions(-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumptionMax. 5W (Max 7W with IR cut filter on)
Weather proof ratingIP66
IR rangeUp to 100 ft
Dimension 6" x 2.79" x 2.79"
Weight 1.1 lbs
