IP-BFR4K4PK-W

2 reviews

4K LONG RANGE 4 WIRELESS BATTERY BULLET IP CAMERA PK

● 1x 8CH 4K Wireless NVR with 1TB

● 4x 4K Long Range Wireless Battery IP Camera

● Up to 2100 Ft Wireless Range (No interference distance)

● PIR Motion Sensor, SD Card, WiFi 802.11ah

● Rechargeable Battery up to 6 Months

● Two Way Audio, IP66 Weather Proof

● 70 Ft Infrared Night Vision

Model No.IP-BFR4K2PK-W

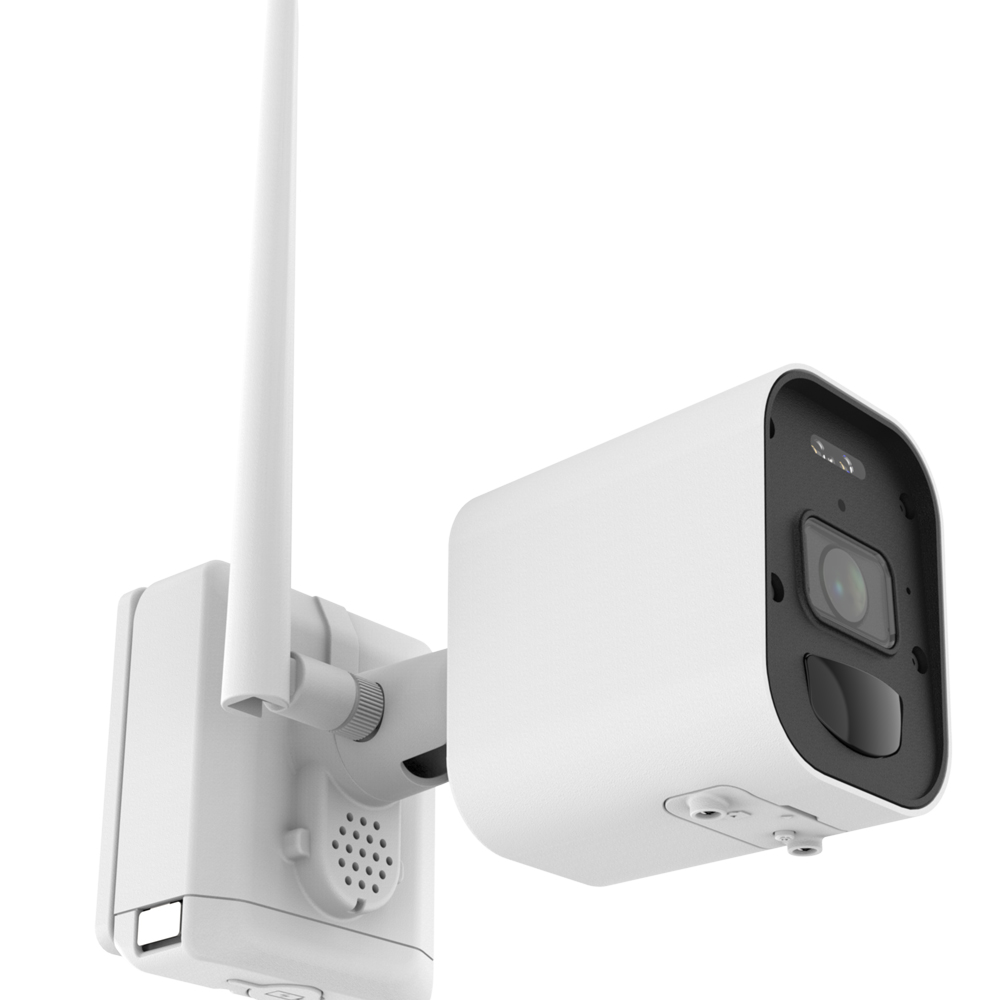

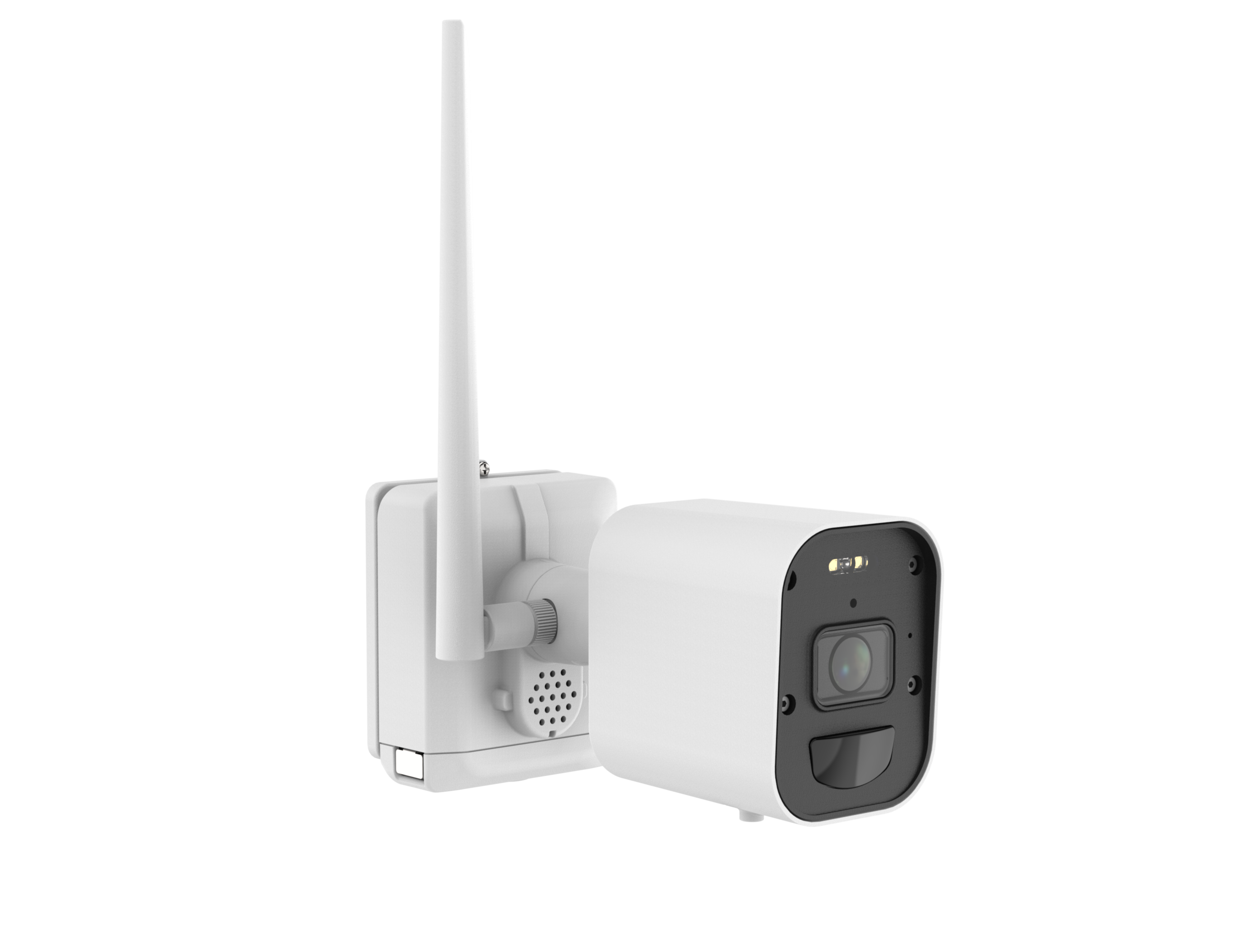

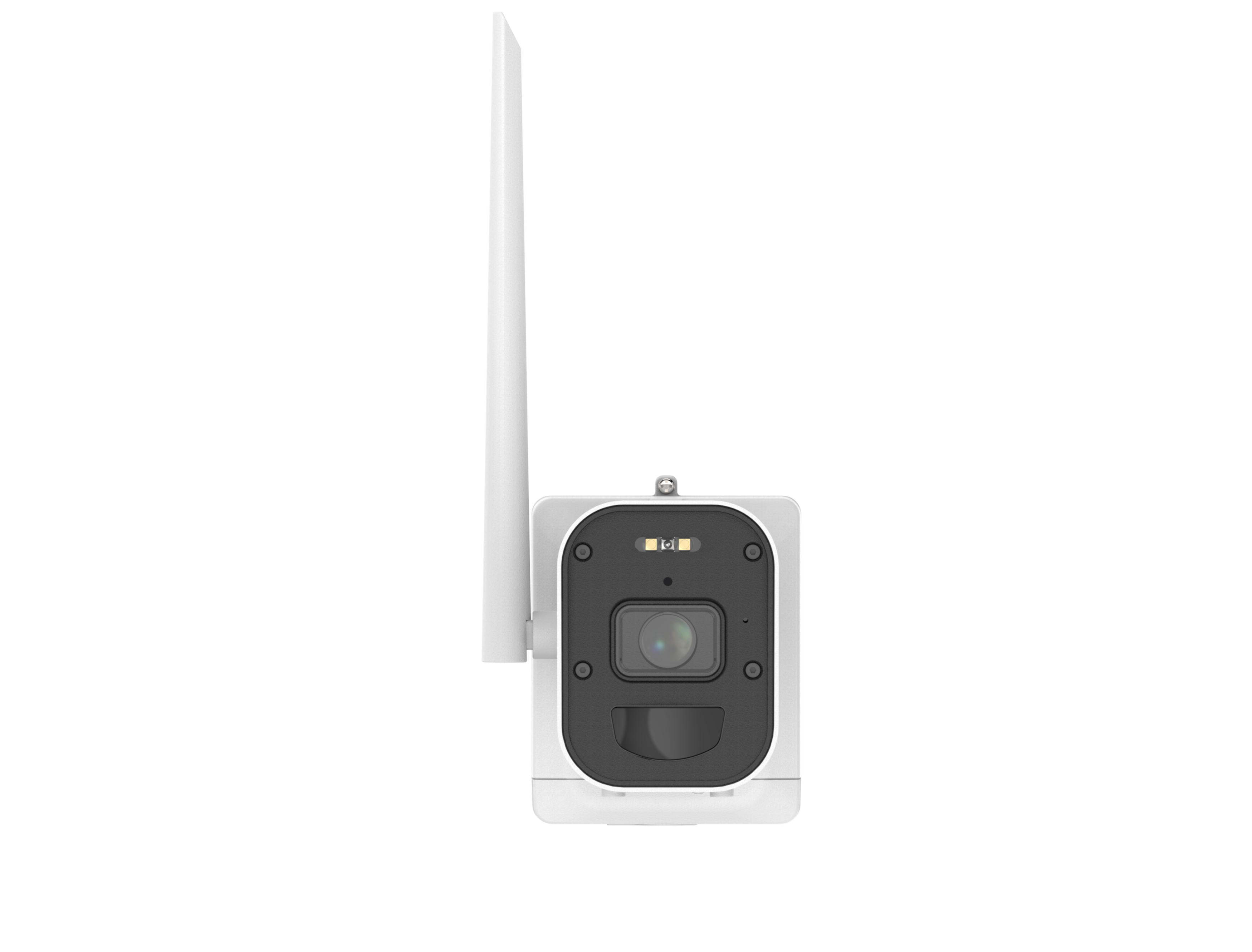

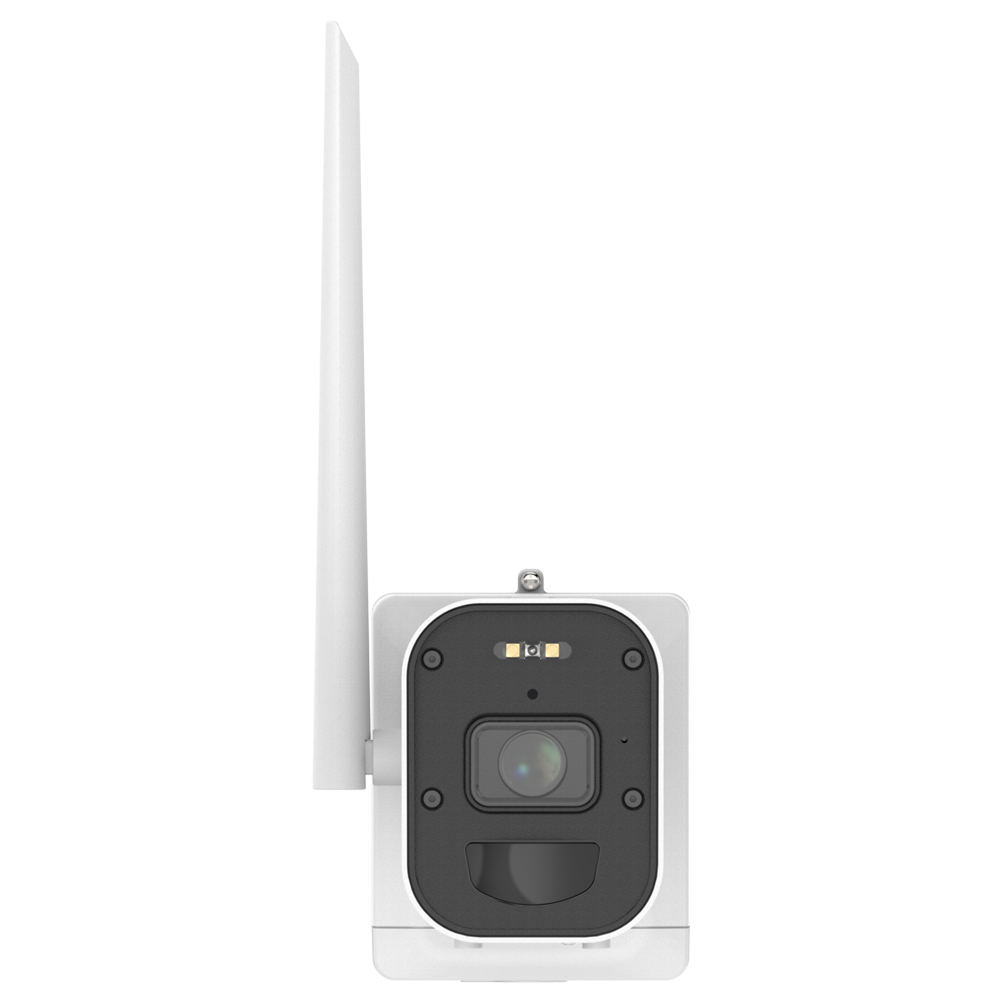

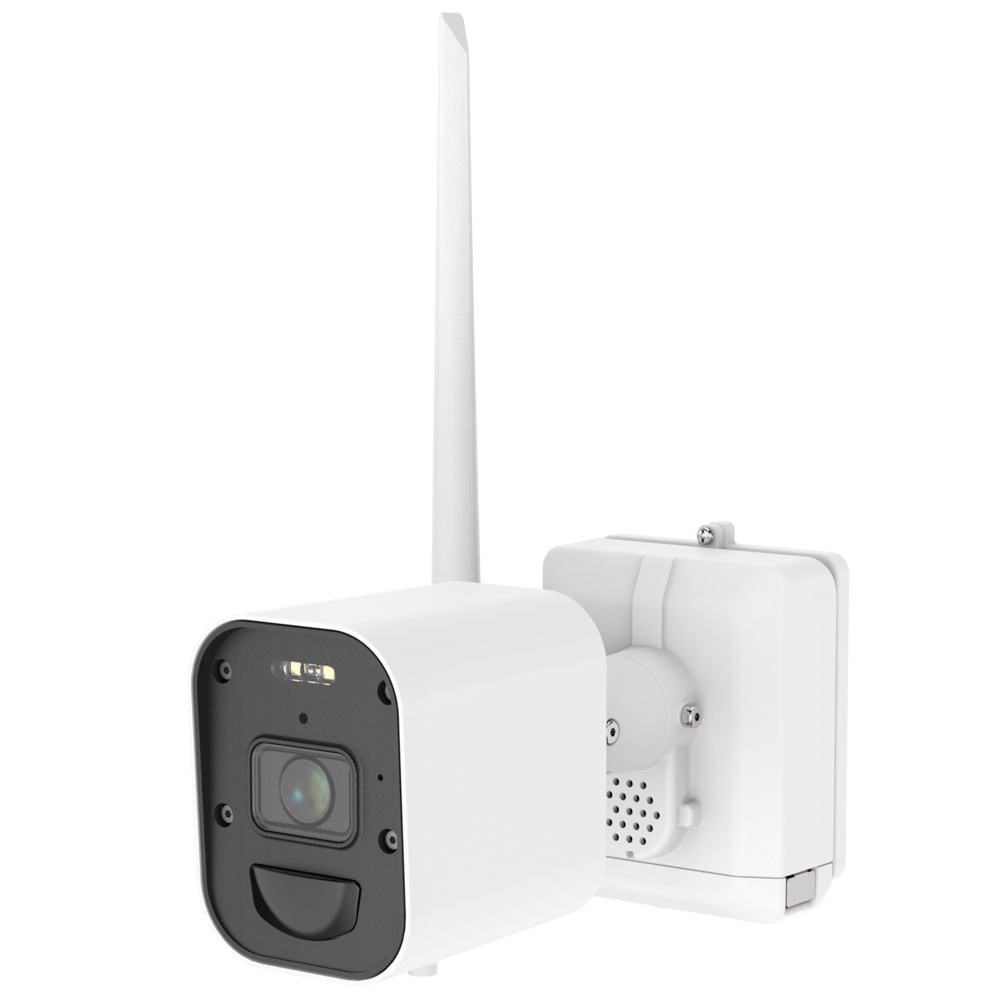

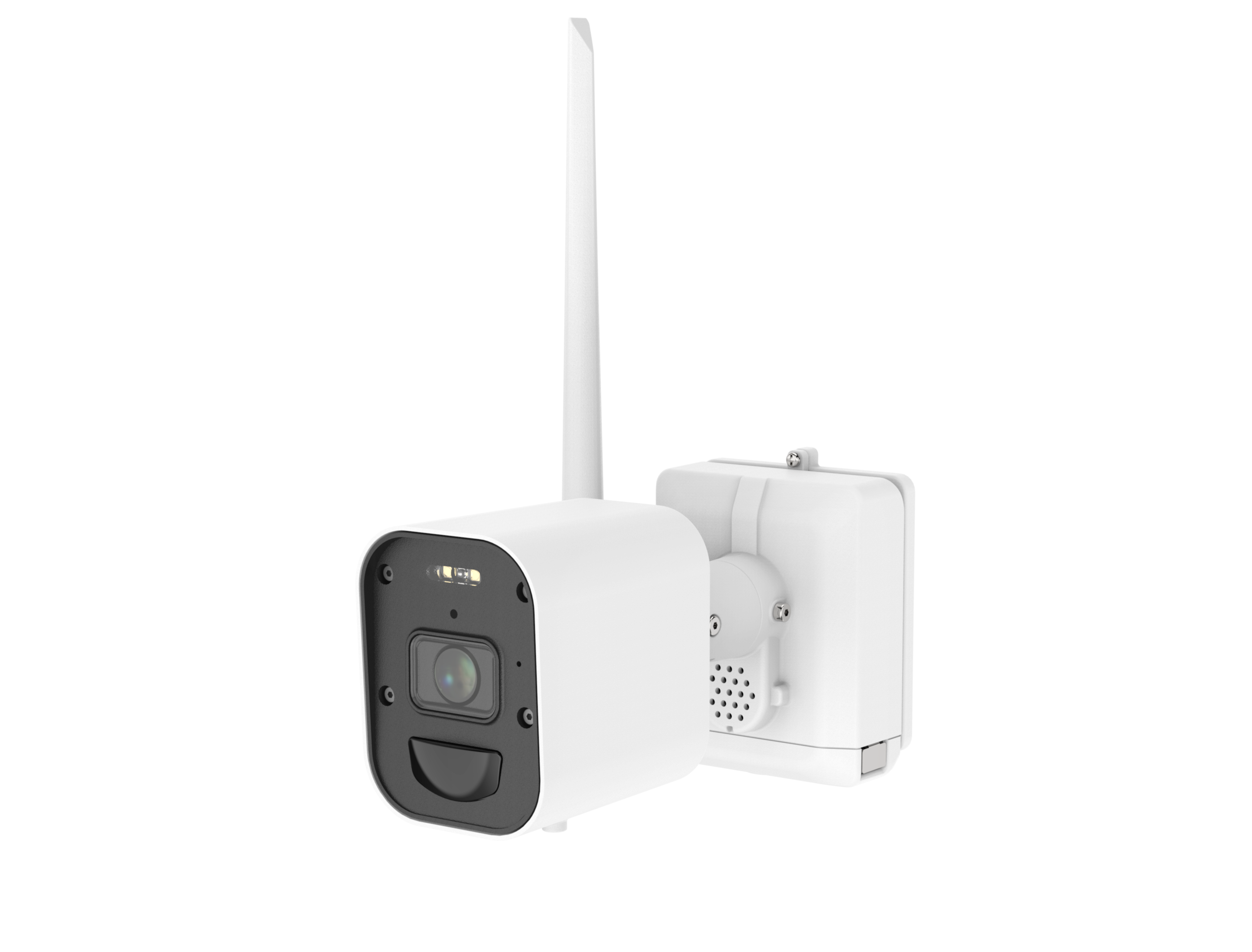

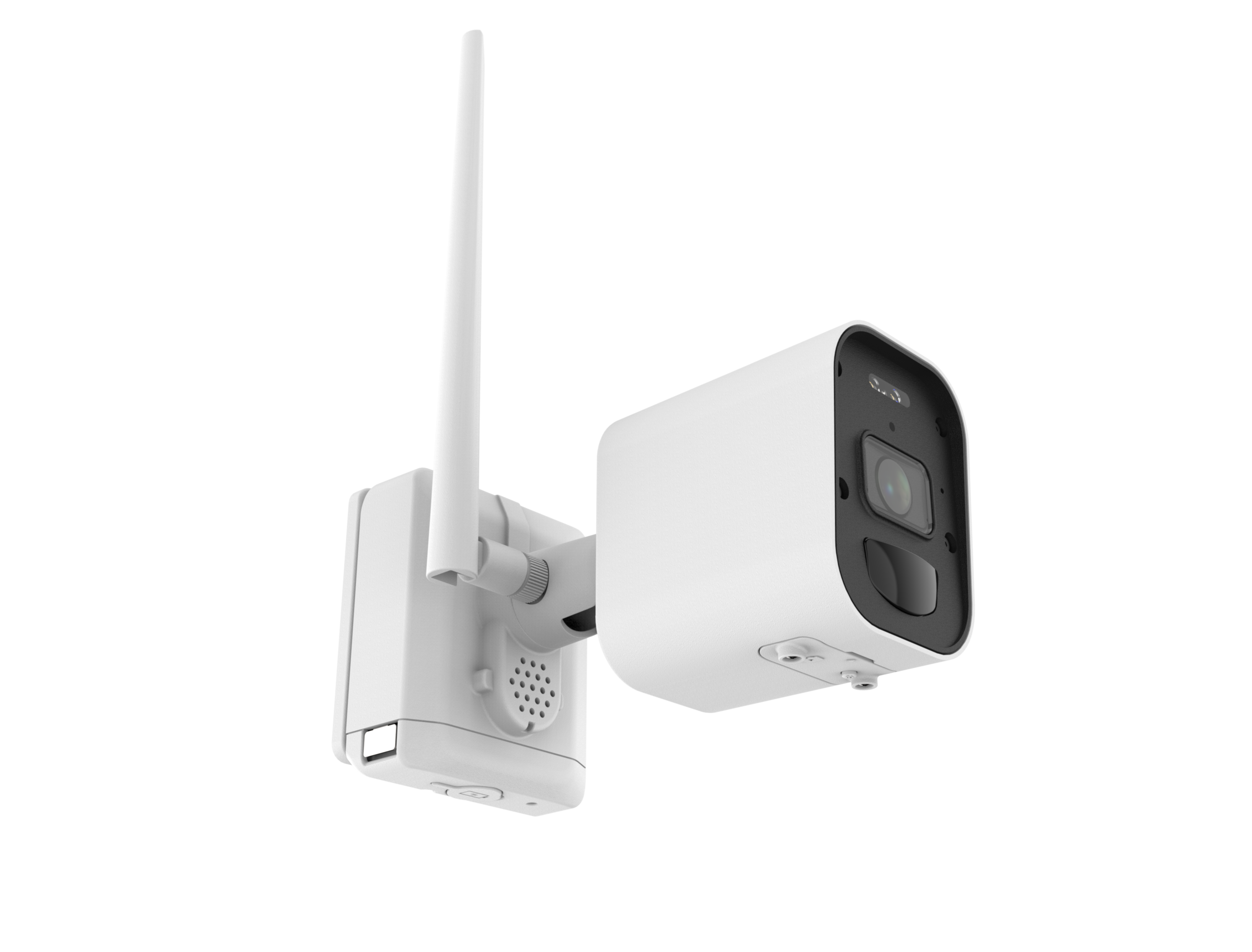

Wireless Battery IP Camera Specification
Camera
Image sensor1/2.7” 8MP progressive scan CMOS
Min. illumination0.05 lux @F1.2, AGC ON, 0 lux with IR
Shutter time 1/3s ~ 1/10,000s
Lens 2.8mm@F2.0, angle of view: 92.2°
Lens mountM12
Day & night IR cut filter with auto switch
Digital noise reduction3D DNR
Compression Standard
Video compressionH.264 / MJPEG / H.265
H.264 codec profileMain profile
Bit rate32 Kbps ~ 16 Mbps
Dual streamsSupport
Max. Image Resolution3840*2160  (8MP)
Frame rate30fps (1920 × 1080), 30fps (1280 x 720)
Image settingsRotate Mode, Saturation, Brightness, Contrast Sharpness
adjustable by client software or web browse

BLCYes, zone configurable
ROI CodecSupport
Function
Motion AngleUp to 120°
Motion DistanceUp to 40 Feet
Motion PIRPIR Motion Detection
Battery Capacity2900mAh/ea
Battery LifeUp to 350 charges
Power Consumption420mA(Activate)/ 400μA (Sleep)
WarningsLow Battery Warnings via app notifications
Interface
Power SourceDC 4.2V±10%
Two way audioSupport
SpeakerBuilt-in, Weather Proof
MicBuilt-in, Weather Proof
SD CardSD Slot Up to 256GB
Wireless
Wireless StandardsWiFi 802.11ah
Wireless DistanceUp to 2100 Ft with a clear line-of-site
General
Operating conditions(-22°F ~ 140 °F)   humidity 95% or less (non-condensing)


Power supplyDC 4.2V±10%
Power consumptionMax. 1.8W
Weather proof ratingIP66
HousingMetal
IR rangeUp to 70 Ft
Dimension                         5.4" x 2.9" x 3.5"
Weight                            1.1 lbs

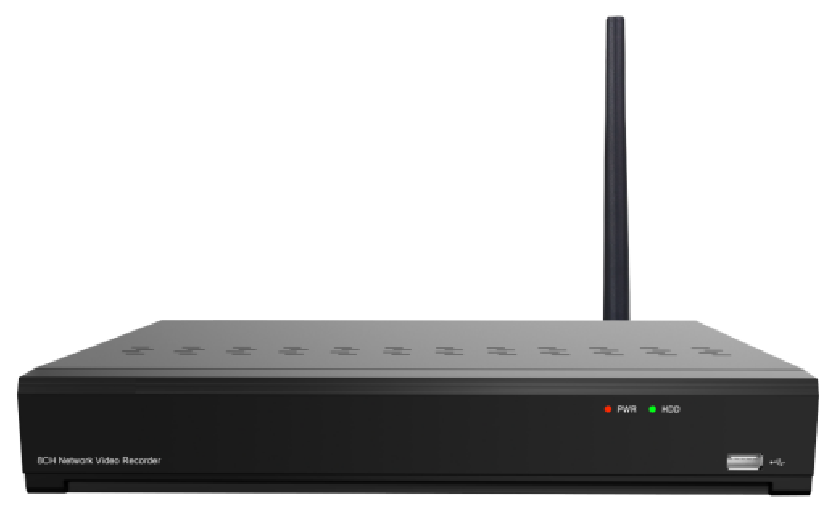

Wireless NVR Specification
Video/Audio input
Video compressionH.265
IP Video Input8-ch
Incoming Bandwidth32 Mbps
Video /Audio output
HDMI outputHDMI Up to 4K (1280*1024, 1280*720, 1920*1080,2560*1440, 3840*2160)
Video spot outputN/A
Encoding resolution4K/5MP/1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Frame rate4K UHD@15fps(Auto fps, Adaptive bitrate)
Video bit rate32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps)
Dual-streamSupport | (Sub-stream at CIF / QCIF: 30fps)
Stream typeVideo, Video & Audio
Playback resolution4K/5MP/1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback8-ch
Hard Disk
SATA1 SATA interface
CapacityUp to 6TB capacity
External interface
Network interface1 RJ-45 10 /100 Mbps WAN interface; 3 RJ-45 10 / 100M LAN interfaces.
Serial interfaceN/A
USB interface3 USB2.0
Alarm in/outN/A
Wireless-WiFi
Frequency BandWiFi 802.11ah
Antenna Structure1 MIMO
Transmission Rate300 Mbps
Transmission StandardIEEE 802.1b/g/n
Network ProtocolIPv6, UPnP, SNMP, NTP, SADP, DDNS, SMTP, NFS, iSCSI.
Remote connection128
General
Power supply12 VDC 2A
Consumption≤12 W
Working temperature14ᵒF - 131ᵒF
Working humidity10% ~ 90%
Chassis1U
Dimensions12 × 9 × 2 Inch
Weight< 1.2lb without HDD
