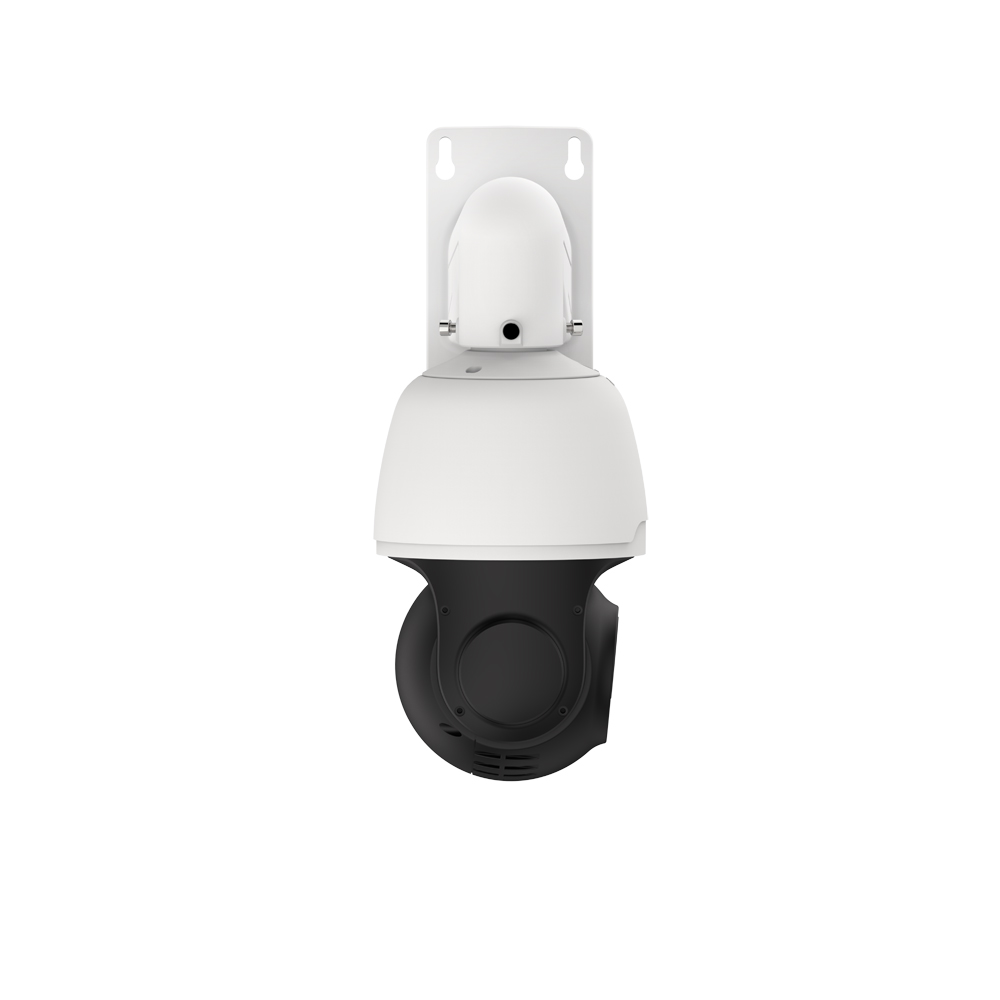

IPC-PTZ-E25XIR8MP-C
2 reviews
4K 8MP AI 2 NETWORK 25X SPEED DOME
| ● 4K HD 8MP Resolution | ||||||
| ● 25x Optical Zoom. 4.7-125MM | ||||||
| ● H.265+ H.264+ Ready, H.264. MJEPG | ||||||
| ● 8 LEDs, (300 ft) | ||||||
| ● Priavcy Masking, 3D DNR, DWDR | ||||||
| ● PoE Support Plug in and Play | ||||||
| ● IP66 Rating | ||||||
| ● Full Color Day & Night | ||||||
| ● 3D Inteligent Positioning | ||||||
| ● Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map | ||||||
| Model No. | IPC-PTZ-E25XIR8MP-C | ||||
| Camera | |||||
| Image sensor | 1/2.8" Progressive CMOS | ||||
| Image Resolution | 8MP 3840(H)×2160(V) | ||||
| Signal System | PAL/NTSC | ||||
| Min Illumination | Color: 0.002 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR | ||||
| White Balance | Auto/Manual/ATW/Indoor/Outdoor | ||||
| AGC | Auto/Manual | ||||
| S/N Ratio | > 50 db | ||||
| 3D DNR | Support | ||||
| DWDR | Support | ||||
| EIS | Support | ||||
| Backlight Compensation | Support | ||||
| Shutter Speed | NTSC: 1-1/10,000s | ||||
| Day & Night | Full Color Day & Night | ||||
| Optical Zoom | 25X | ||||
| FOV | Horizontal field of view: 56.9° to 2.9° (wide-tele), | ||||
| Vertical field of view: 32.2° to 1.6° (wide-tele), | |||||
| Diagonal field of view:65.2° to 3.3° (wide-tele) | |||||
| Privacy Mask | 8 Privacy Mask, Max 8 Zones can be masked simultaneously | ||||
| Focus Model | Auto/Manual | ||||
| Lens | |||||
| Focal Length | 4.7-125MM | ||||
| Zoom Speed | Approx. 3s | ||||
| Min Working Distance | 10mm(W)-1000mm(T) | ||||
| Pan and Tilt | |||||
| Pan Range | 360°Endless | ||||
| Pan Speed | Pan speed: configurable from 0.6° to 80°/s; preset speed: 120°/s | ||||
| Tilt Range | 0°- 90°(Auto Flip) | ||||
| Tilt Speed | Tilt speed: configurable from 0.6° to 80°/s, preset speed 100°/s | ||||
| Number of Preset Position | 256 | ||||
| Patrol | 8 Patrols, Up to 32 Presets per patrol256 | ||||
| Pattern | 4 Patterns, with total recording time no less than 10 mins | ||||
| Power-off Memory | Support | ||||
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Random Scan | ||||
| PTZ Position Display | On/Off | ||||
| Color Mode | |||||
| Warm Light | 8 LEDs | ||||
| Light Distance | 300 Ft | ||||
| Light Intensity | Auto adjusted | ||||
| Network | |||||
| Onvif | Support | ||||
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, | ||||
| Dual Streams | Support | ||||
| Security | User Authentication, Host Authentication | ||||
| Interface | |||||
| Communication interface | 1 RJ45 10 M / 100 M Ethernet interface | ||||
| User/Host level | Up to 32 users，3 Levels: Administrator, Camera control, Live view only | ||||
| Web Browser | IE 7, IE 8, IE 9 | ||||
| Camera Control | Pan / Tilt, Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call | ||||
| Protocols | Self-adaptive | ||||
| General | |||||
| Menu Language | English | ||||
| Power | DC 12V/POE+, max. 22 W | ||||
| Working Temperature | -20°C-60°C，≤90%RH(frostless) | ||||
| Mounting | Wall Mount Included | ||||
| Weather proof rating | IP66, TVS 3,000V lightning protection, surge and voltage protection | ||||
| Dimensions | Ø 160 mm × 270 mm (Ø 6.3" × 10.6") | ||||
| Weight | 2.5 kg (5.51lb.) | ||||
