IPC-WDFR8MP-TD-AI(II)-S
2 reviews

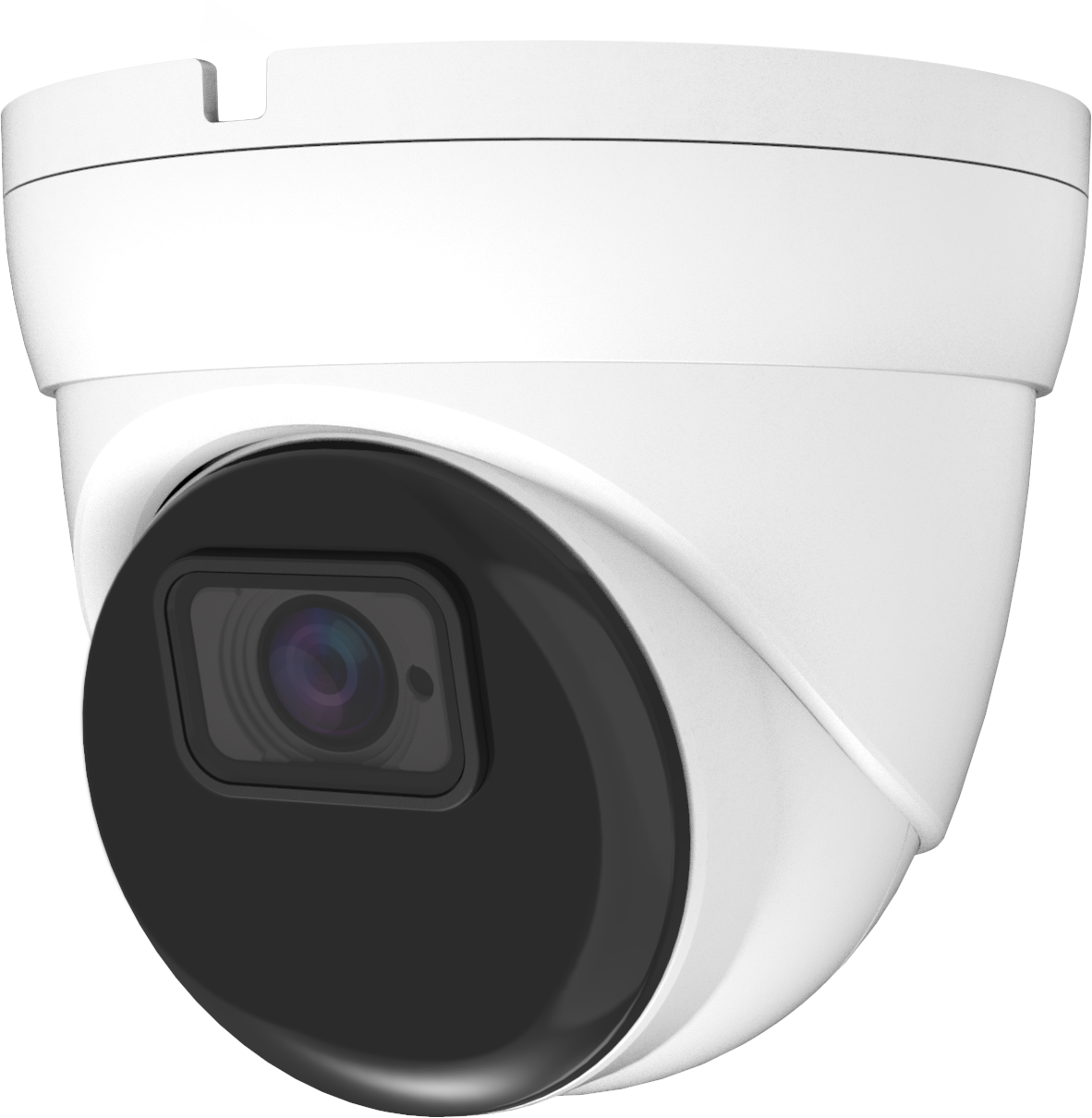

8MP IP AI+ TRUE WDR TRUE COLOR MINI DOME POE CAMERA
● 8MP 3840(H)×2160(V)
● Second Gen AI True Color Night
● H.265+ H.264+ Ready, H.264. MJEPG
● 3D DNR, BLC, True WDR, ICR
● Built-in microphone
● Dual Video Streams
● IP67 Rating
● Metal housing & Bracket
● True Day/Night
● AI+ Include Facial Detection, Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Crossing Count
We reserve the right to modify product design and specification without notice and whitout incurring any obligation
For more information please contact a DSS Sales Representative
Toll Free: 1.888.467.8812 ∙ Fax: 1.609.431.0932 ∙ Email: sales@dss-cctv.com
www.dssdepot.com
| Technical Specifications | |
| Model No. | IPC-WDFR8MP-TD-AI(II)-S |
| Camera | |
| Image sensor | 1/2.7" Progressive CMOS |
| Min. illumination | 0.01 lux @F1.2, AGC ON, 0 lux with IR |
| Shutter time | 1/3s ~ 1/10,000s |
| Lens | 2.8mm @F2.0 Angle of view: 109° |
| Lens mount | M12 |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | 128 True WDR |
| Compression Standard | |
| Video compression | H.264 / MJPEG / H.264+/H.265+ |
| H.264 codec profile | Main profile |
| Bit rate | 32 Kbps ~ 16 Mbps |
| Dual streams | Support |
| Image | |
| Max. Image Resolution | 8MP 3840(H)×2160(V) |
| Frame rate | Mainstream 20fps8MP(3840x2160),5MP(2592x1944,3072x1728), 4MP(2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280960),720P(1280x720) |
| Image settings | Rotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse |
| BLC | Yes, zone configurable |
| ROI Codec | Support |
| Network | |
| Network storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Interoperability | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Security | User Authentication, watermark |
| Interface | |
| Communication interface | 1 RJ45 10 M / 100 M Ethernet interface |
| Web Browser | IE 7, IE 8, IE 9 |
| P2P Connection | Built in |
| Mobile App | RXCAMVIEW Android/iPhone |
| MIC | Built-in |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | 12 VDC ± 10% , PoE (802.3af) |
| Power consumption | Max. 5W (Max 7W with IR cut filter on) |
| Weather proof rating | IP67 |
| IR range | Up to 100 ft |
| Dimension | 5" x 3.9" x 5" |
| Weight | 1.1 lbs |
