IP-DFR8MP16PKW
2 reviews

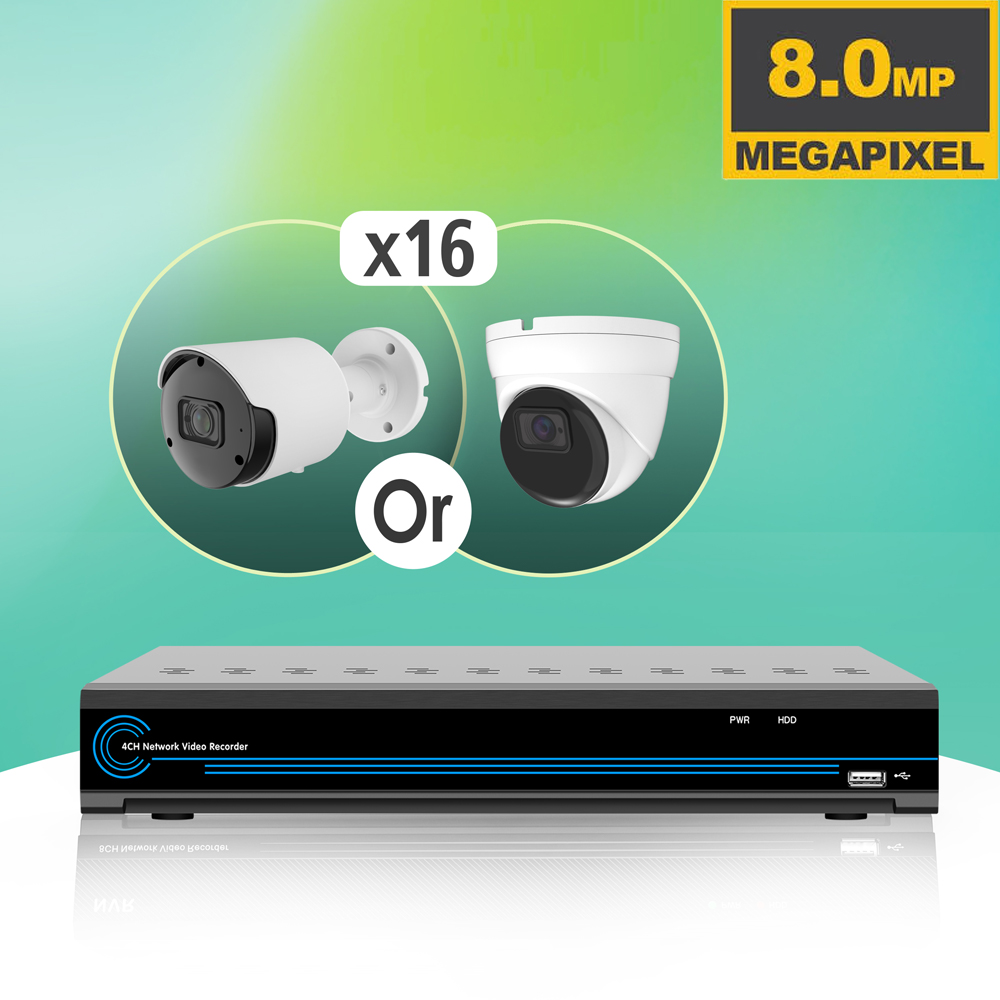

"NDAA COMPLIANCE" 16 8MP Dome IP Package NO HDD
IP Package
16x IPC-QDFR8MP-TD-AI-S
1X NVR6116P16-C
| Technical Specifications | |

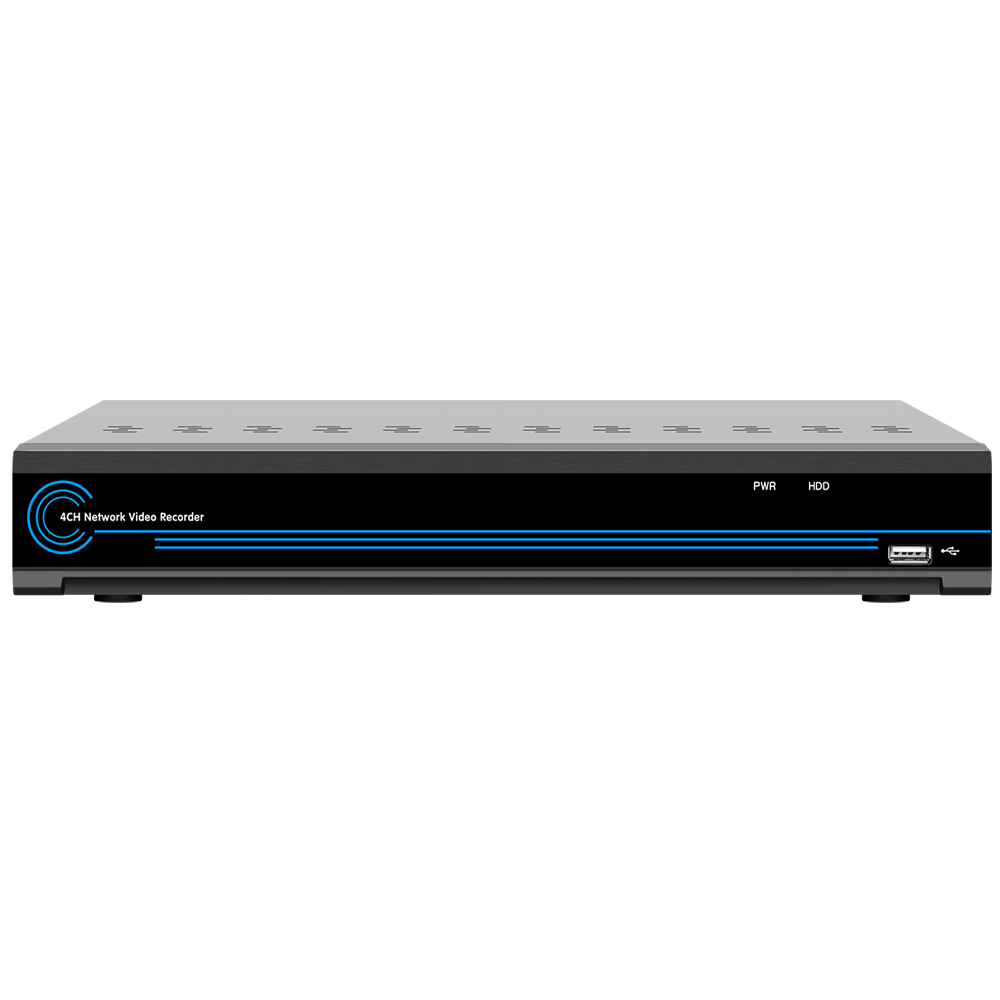

| Model No. | NVR-6116P16-C |
| Video/Audio input | |
| Video compression | H.264, H264+, H265, H265+ |
| IP Video input | 16-ch |
| Incoming Bandwidth | 112 Mbps |
| Outgoing Bandwidth | 96 Mbps |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video /Audio output | |
| HDMI output | 1-ch, resolution: 4K(3840*2160)/60Hz,4 K(3840*2160)/30Hz,1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| VGA output | 1-ch, resolution: 1920 x 1080P /60 Hz ,1600 x 1200 /60 Hz, 1280 x 1024 /60 Hz,1280 x 720 /60 Hz, 1024 x 768 /60 Hz |
| CVBS output | N/A |
| Video spot output | N/A |
| Encoding resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF |
| Frame rate | 30 fps |
| Video bit rate | 32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps) |
| Audio output | 1-ch, RCA (Linear, 600 Ω) |
| Audio bit rate | 16 Kbps |
| Dual-stream | Support | (Sub-stream at CIF / QCIF: 30fps) |
| Stream type | Video, Video & Audio |
| Playback resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF |
| Synchronous playback | 16-ch 1080P |
| Hard Disk | |
| SATA | 1 SATA interfaces |
| Capacity | Up to 12TB capacity for each disk |
| Interface | |
| Network interface | 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface 16 independent 10 / 100 Mbps PoE Ethernet interfaces |
| Web Browser | IE 7, IE 8, IE 9 |
| Serial interface | 1 RS-485 half-duplex interface |
| P2P Connection | Built in |
| Mobile App | RXCAMVIEW Android/iPhone |
| USB interface | 1 x 3.0 USB Backup/Upgrade 2 x 2.0 USB |
| Alarm in/out | N/A |
| General | |
| Power supply | 48V DC |
| Consumption | ≤11 W |
| Working temperature | 14ᵒF - 131ᵒF |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimensions | 15x 13.40 x1.8 inch |
| Weight | < 2.2 Lb |
| Technical Specifications | |
| Model No. | IPC-QDFR8MP-TD-AI-S |
| Camera | |
| Image sensor | 1/2.5" Progressive CMOS |
| Min. illumination | Color 0.009lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| Shutter time | 1/3s ~ 1/10,000s |
| Lens | 2.8mm @F2.0 Angle of view: 109° |
| Lens mount | M12 |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | TRUE WDR |
| Compression Standard | |
| Video compression | H.264 / MJPEG / H.264+/H.265+ |
| H.264 codec profile | Main profile |
| Bit rate | 32 Kbps ~ 16 Mbps |
| Dual streams | Support |
| Image | |
| Max. Image Resolution | 8MP 3840(H)×2160(V) |
| Frame rate | 60Hz:(1~15fps@4K, default 15fps@4K 8MP (3840x2160),5MP(3072*1728)(2592*1944),4MP(2592x1520),3MP(2304x1296), 1080P(1920x1080), 720P(1280x720), |
| Image settings | Rotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse |
| BLC | Yes, zone configurable |
| ROI Codec | Support |
| Network | |
| Network storage | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Interoperability | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Security | User Authentication, watermark |
| Interface | |
| Communication interface | 1 RJ45 10 M / 100 M Ethernet interface |
| Web Browser | IE 7, IE 8, IE 9 |
| P2P Connection | Built in |
| Microphone | Built in |
| Mobile App | RXCAMVIEW Android/iPhone |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | 12 VDC ± 10% , PoE (802.3af) |
| Power consumption | Max. 5W (Max 7W with IR cut filter on) |
| Weather proof rating | IP66 |
| IR range | Up to 100 ft |
| Dimension | 4.33" x 3.88" x 4.33" |
| Weight | 1.1 lbs |
