IPC-QDFR5MP-AI(II)-C

2 reviews

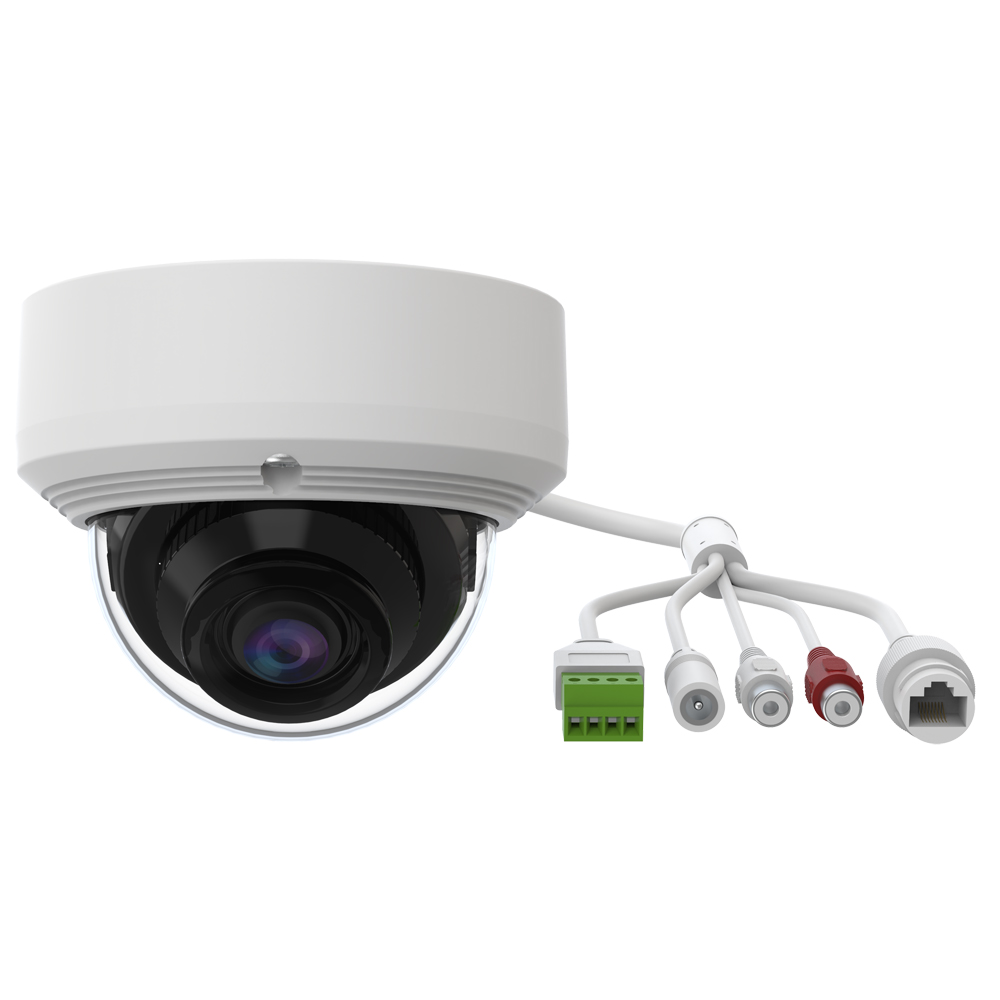

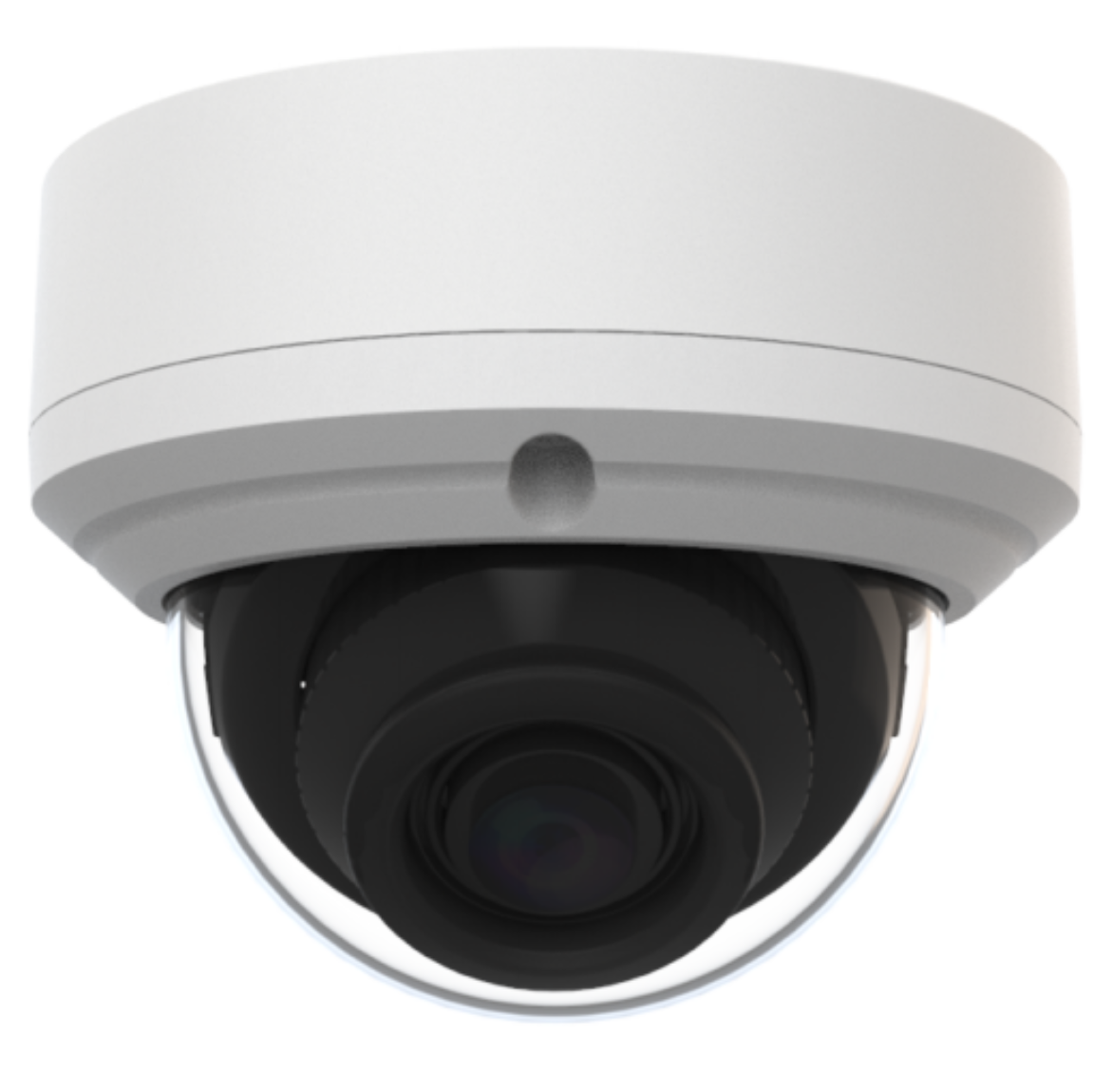

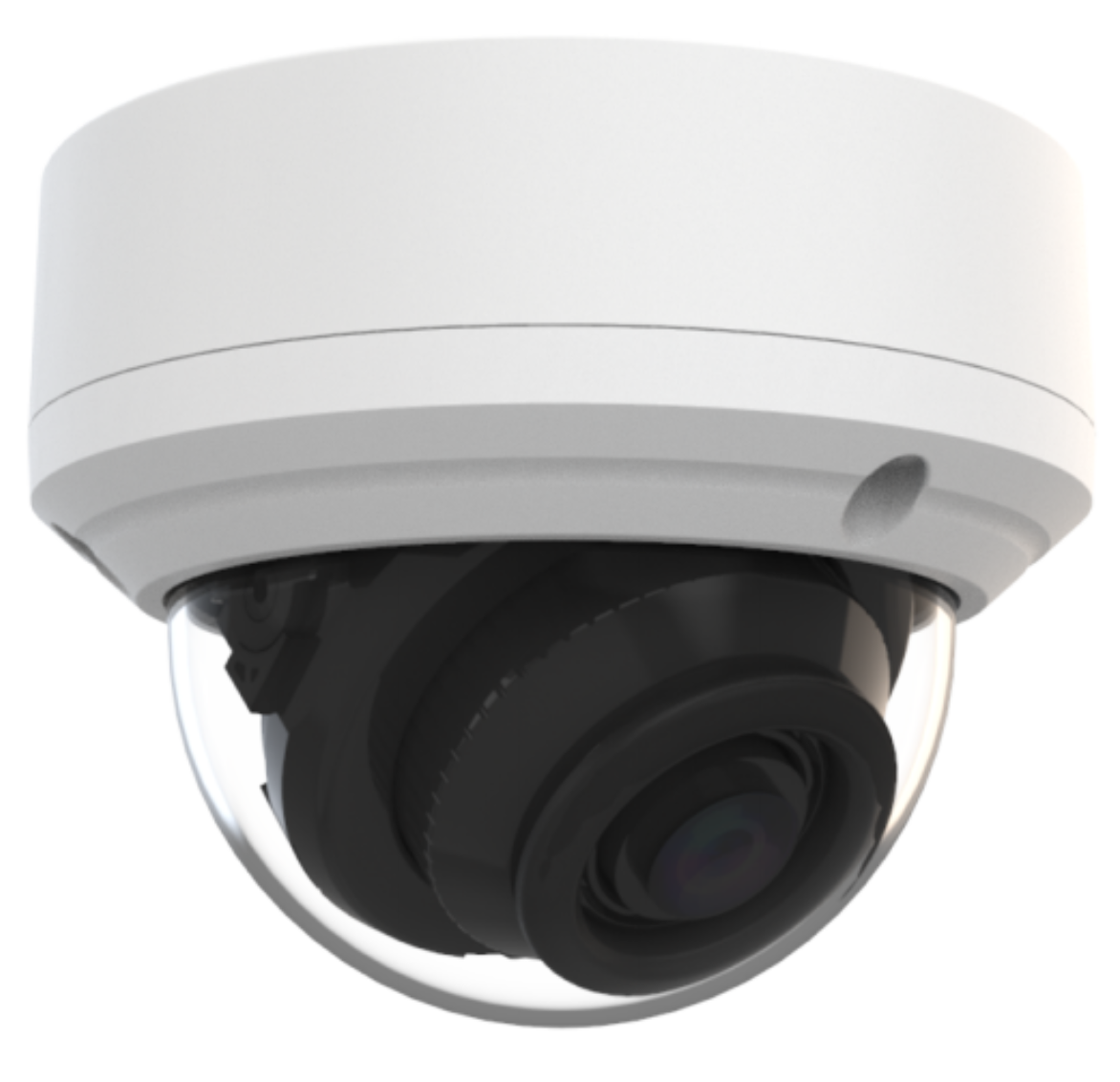

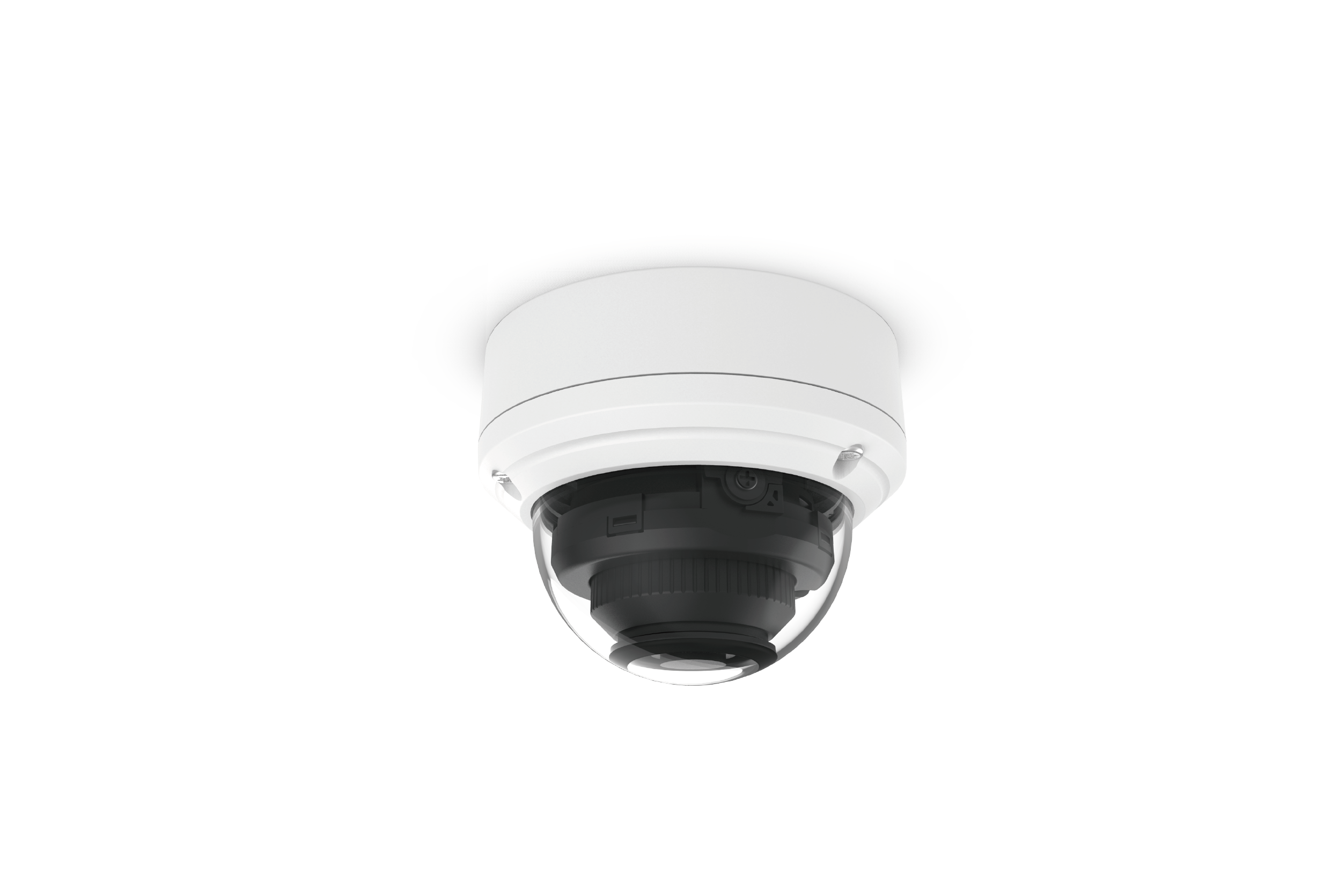

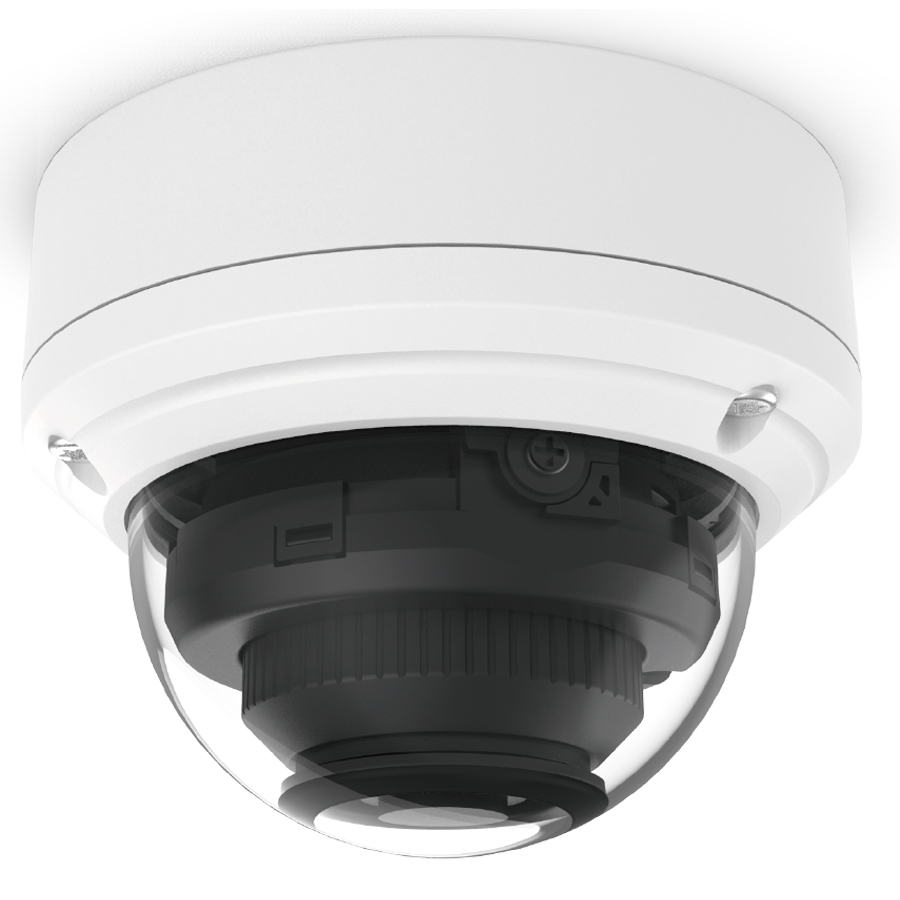

"NDAA COMPLIANCE" 5MP IP AI+IR VANDAL PROOF DOME POE CAMERA

● 5MP 2592(H)×1944(V)

● HD Video Output

● H.265+ H.264+ Ready, H.264. MJEPG

● 3D DNR, BLC, WDR, ICR

● IR Range: Up to 100 ft

● IP66 Rating, IK10 Vandal Proof

● Metal housing & Bracket

● True Day/Night

● AI+ Include Facial Detection, Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Crossing Count

Technical Specifications
Model No.IPC-EDFR5MP-AI-C
Camera
Image sensor1/2.7" Progressive CMOS
Min. illuminationColor 0.05lux @ F1.6(AGC ON) ;   B/W 0 lux @ IR ON
Shutter time 1/3s ~ 1/10,000s
Lens 2.8mm @F2.0 Angle of view: 109°
Lens mountM12
Day & night IR cut filter with auto switch
Digital noise reduction3D DNR
Wide dynamic rangeTRUE WDR
Compression Standard
Video compressionH.264 / MJPEG / H.264+/H.265+
H.264 codec profileMain profile
Bit rate32 Kbps ~ 16 Mbps
Dual streamsSupport
Max. Image Resolution5MP 2592(H)×1944(V)
Frame rate60Hz: (1~30fps)5MP(2592×1944),4MP(2592x1520) 3MP(2048x1520),1080P(1920x1080) 960P(1280x960), 720P(1280x720)
Image settingsRotate Mode, Saturation, Brightness, Contrast Sharpness adjustable by client software or web browse
BLCYes, zone configurable
ROI CodecSupport
Network
Network storage NAS (Support NFS,SMB/CIFS), ANR
Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Interoperability ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Security User Authentication, watermark
Interface
Communication interface1 RJ45 10 M / 100 M Ethernet interface
Web BrowserIE 7, IE 8, IE 9
P2P ConnectionBuilt in
Mobile AppRXCAMVIEW Android/iPhone
General
Operating conditions(-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power supply12 VDC ± 10% , PoE (802.3af)
Power consumptionMax. 5W (Max 7W with IR cut filter on)
Weather proof ratingIP66
IR rangeUp to 100 ft
Dimension 4.33" x 3.88" x 4.33"
Weight 1.1 lbs
