DFLT-1080PW28

2 reviews

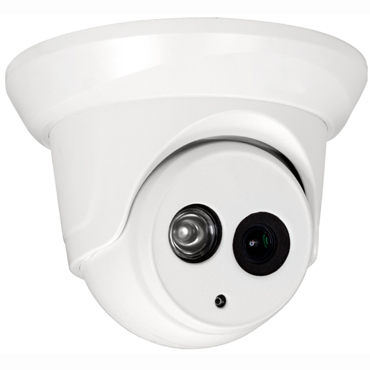

"NDAA COMPLIANCE" 2.8 HD 1080P TVI DAY/NIGHT WEATHERPROOF EXIR LONG RANGE FIXED LENS DOME CAMERA

● 1/3“ Progressive Scan CMOS

● HD1080P Video Output

● 4 in 1, HD-TVI, CVI, AHD, Analog

● 3D DNR, Smart IR, DWDR

● Wide Angle 2.8mm Fixed Lens

● 1 Built in EXIR LEDs, (120 Ft. Night Vision)

● Vandal Resistant IP66 Weatherproof

● True Day/Night

● 3 Years Warranty

Technical Specifications
Model No.DSS-DFLT-1080PW28
Camera
Image sensor1/3“ Progressive Scan CMOS
Min. illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter time 1 / 25 s to 1 / 50,000 s
Lens 2.8mm Angle of View: 90.9°
Lens mountM12
Day & night ICR
Digital noise reduction3D DNR
Wide dynamic rangeDWDR
SynchronizationInternal synchronization
HD Video Output1 Analog HD ouput 4 in 1, HD-TVI, CVI, AHD, Analog
VideoCompatible with HD-TVI, CVI, AHD, Analog
S/N RatioMore than 52dB
Max. Image Resolution1920(H)*1080(V)
Signal SystemNTSC
Frame rate1080p@30fps
Image settingsSaturation, brightness, contrast, sharpness adjustable through client software or web browser
BLCSupported
General
Operating conditions(-22°F ~ 140 °F) humidity 90% or less (non-condensing)
Power supply12 VDC
Power consumptionMax. 4W
Weather proof ratingIP66
IR rangeUp to 120 ft
Dimension 4.69” × 3.94”
Weight 1.54 Lbs
