DVRT-1080PW
2 reviews

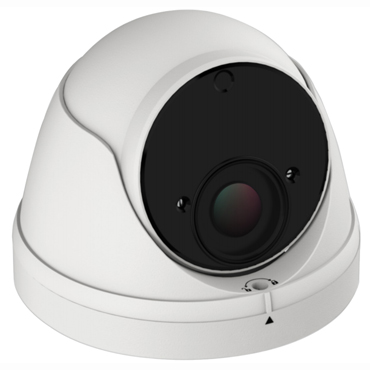

"NDAA COMPLIANCE" HD 1080P TVI DAY/NIGHT WEATHERPROOF IR VARI-FOCAL LENS DOME CAMERA
● 1/2.7“ Progressive Scan CMOS
● HD1080P Video Output
● 4 in 1, HD-TVI, CVI, AHD, Analog
● 3D DNR, Smart IR
● 2.8-12 mm Vari-Focal Lens
● 32 Built in IR LEDs, (120 Ft. Night Vision)
● Vandal Resistant IP66 Weatherproof
● True Day/Night
● 3 Years Warranty
| Technical Specifications | |
| Model No. | DVRT-1080PW |
| Camera | |
| Image sensor | 1/2.7“ Progressive Scan CMOS |
| Min. illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR /0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Shutter time | 1 / 25 s to 1 / 50,000 s |
| Lens | 2.8-12mm Angle of View: 90.9° - 32 ° |
| Lens mount | M12 |
| Day & night | ICR |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | DWDR |
| Synchronization | Internal synchronization |
| HD Video Output | 1 Analog HD ouput 4 in 1, HD-TVI, CVI, AHD, Analog |
| CVBS Output | N/A |
| S/N Ratio | More than 52dB |
| Image | |
| Max. Image Resolution | 1920(H)*1080(V) |
| Signal System | NTSC |
| Frame rate | 1080p@30fps |
| Image settings | Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
| BLC | Supported |
| General | |
| Operating conditions | (-22°F ~ 140 °F) humidity 90% or less (non-condensing) |
| Power supply | 12 VDC |
| Power consumption | Max. 4W |
| Weather proof rating | IP66 |
| IR range | Up to 120 ft |
| Dimension | 4.69” × 3.94” |
| Weight | 1.54 Lbs |
