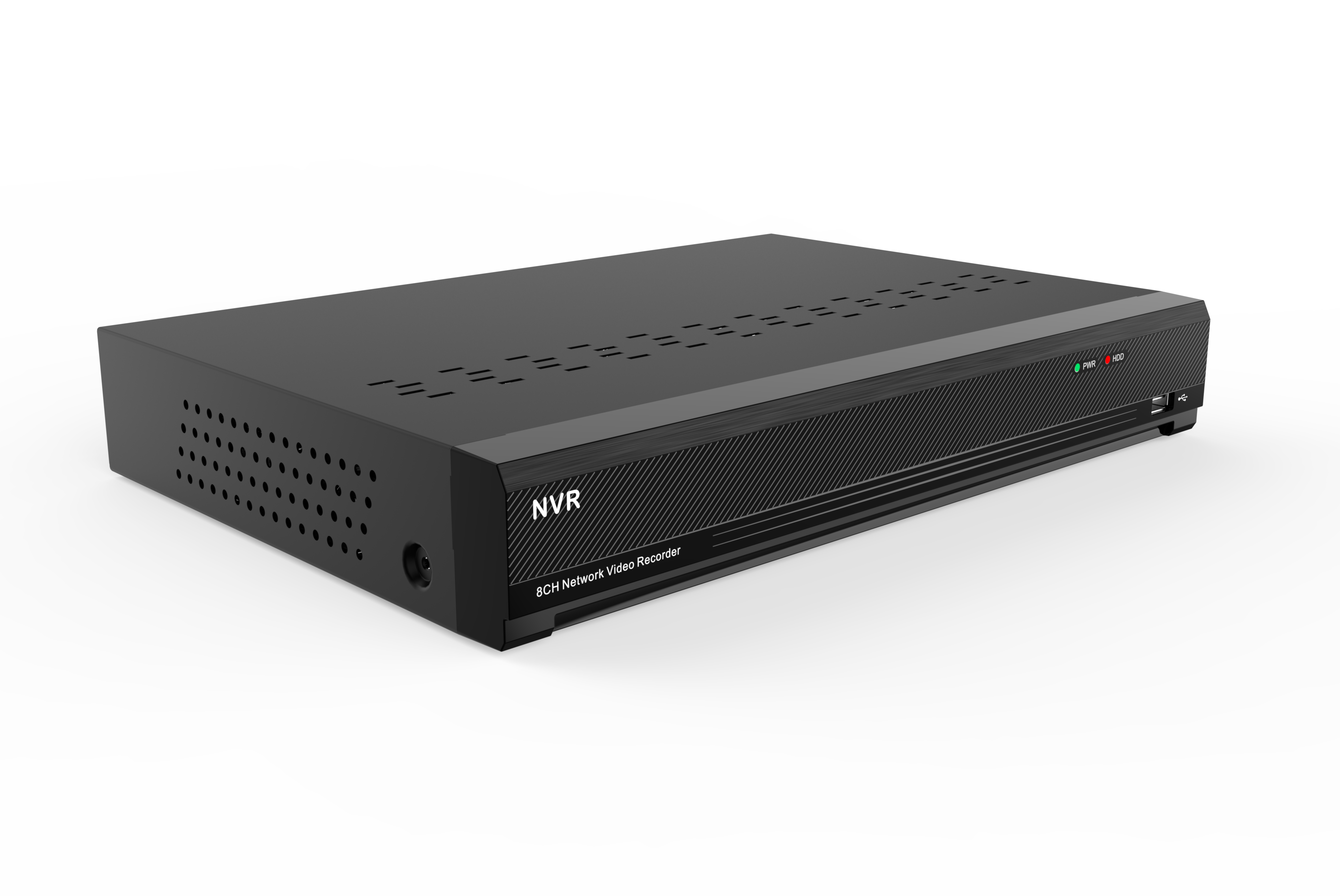

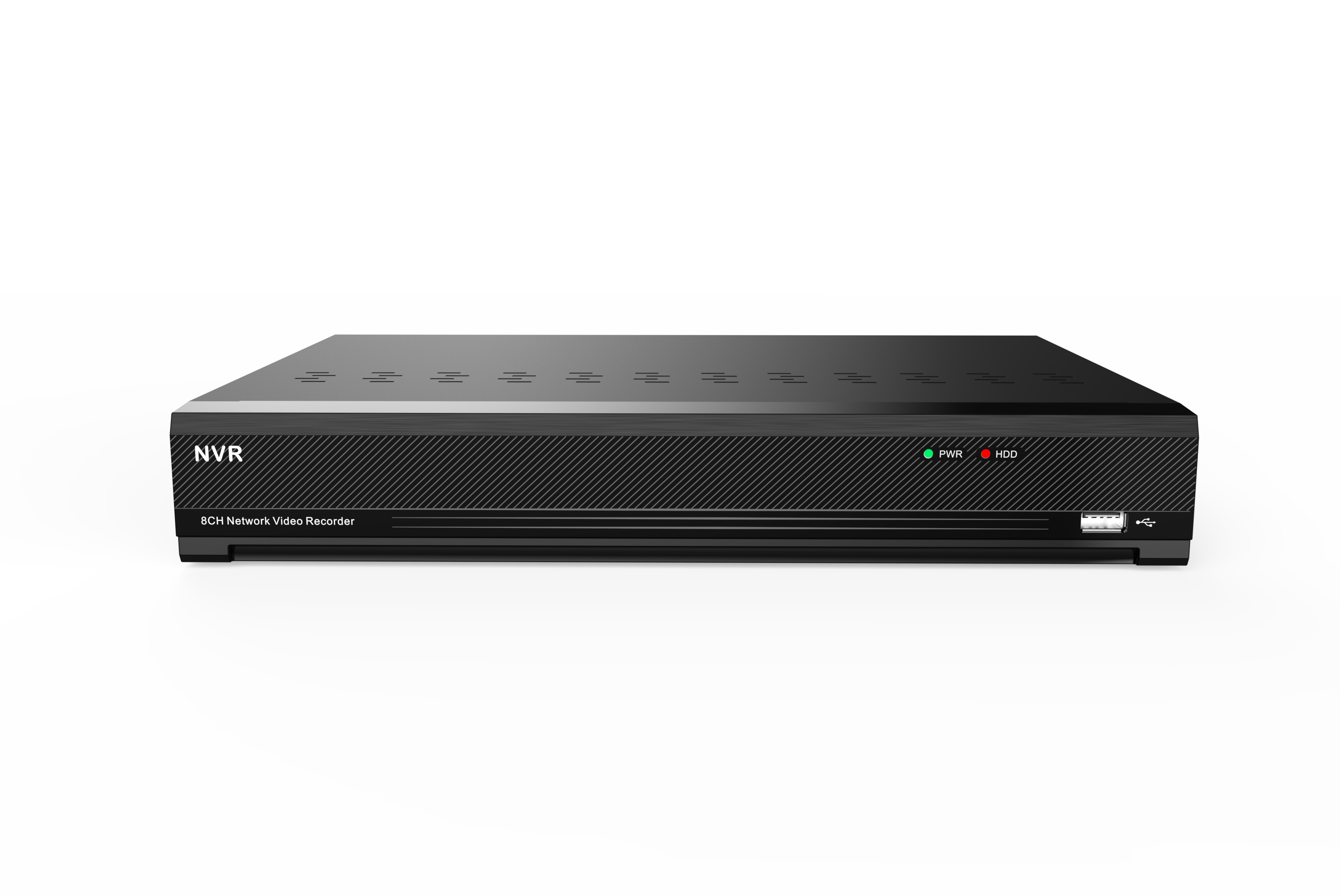

NVR-4104P4
2 reviews
Discontinued
BLUE JAY 5MP 4CH EMBEDDED Plug & Play POE NVR
● Up to 5 Megapixels resolution recording
● Support 1-ch HDMI, 1-ch VGA
● 30M bandwidth
● 1 SATA Up to 12TB
● Plug & Play with up to 4 independent PoE network interfaces
● Support dual-os to ensure high reliablility of system running
● Support H.265+/H.265/H.264/MPEG4 video formats
● Support Onvif, PSIA, CGI, Support Plug in & Play with DSS-H
● Support P2P, Cloud Backup
| Technical Specifications | |
| Model No. | NVR-4104P4 |
| Video/Audio input | |
| Video compression | H.264, H264+, H265, H265+ |
| IP Video input | 4-ch |
| Incoming Bandwidth | 30 Mbps |
| Outgoing Bandwidth | 30 Mbps |
| Two-way audio input | N/A |
| Video /Audio output | |
| HDMI output | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| VGA output | 1-ch, resolution: 1920 x 1080P /60 Hz ,1440 x 900 /60 Hz, 1280 x 1024 /60 Hz,1280 x 720 /60 Hz, 1024 x 768 /60 Hz |
| CVBS output | N/A |
| Video spot output | N/A |
| Encoding resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF |
| Frame rate | 30 fps |
| Video bit rate | 32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps) |
| Audio output | N/A |
| Audio bit rate | N/A |
| Dual-stream | Support | (Sub-stream at CIF / QCIF: 30fps) |
| Stream type | Video, Video & Audio |
| Playback resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF |
| Synchronous playback | 8-ch 1080P |
| Hard Disk | |
| SATA | 1 SATA interfaces |
| Capacity | Up to 12TB capacity for each disk |
| Interface | |
| Network interface | 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface 8 independent 10 / 100 Mbps PoE Ethernet interfaces |
| Web Browser | IE 7, IE 8, IE 9 |
| P2P Connection | Built in |
| Mobile App | RXCAMVIEW Android/iPhone |
| Serial interface | N/A |
| USB interface | 2 x USB2.0 |
| Alarm in/out | N/A |
| General | |
| Power supply | 12V DC |
| Consumption | ≤15 W |
| Working temperature | 14ᵒF - 131ᵒF |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimensions | 12x9x2 inch |
| Weight | < 2.2 Lb |
