NVR-4108P8

2 reviews

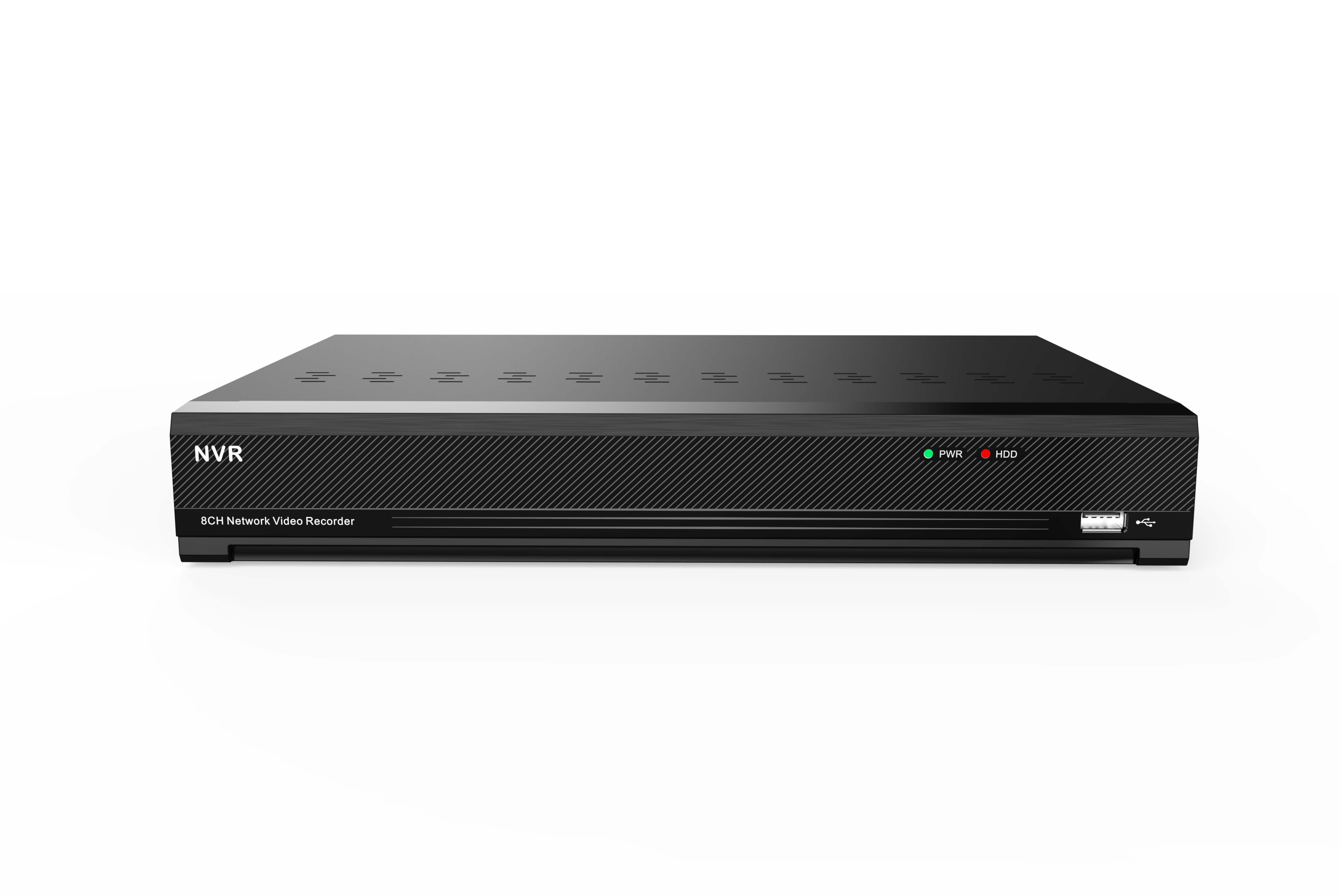

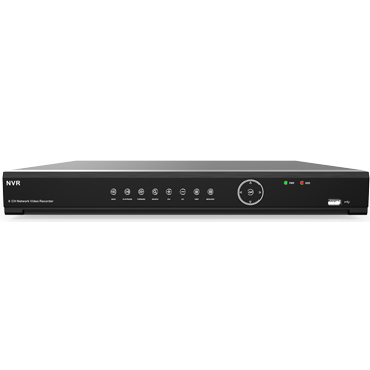

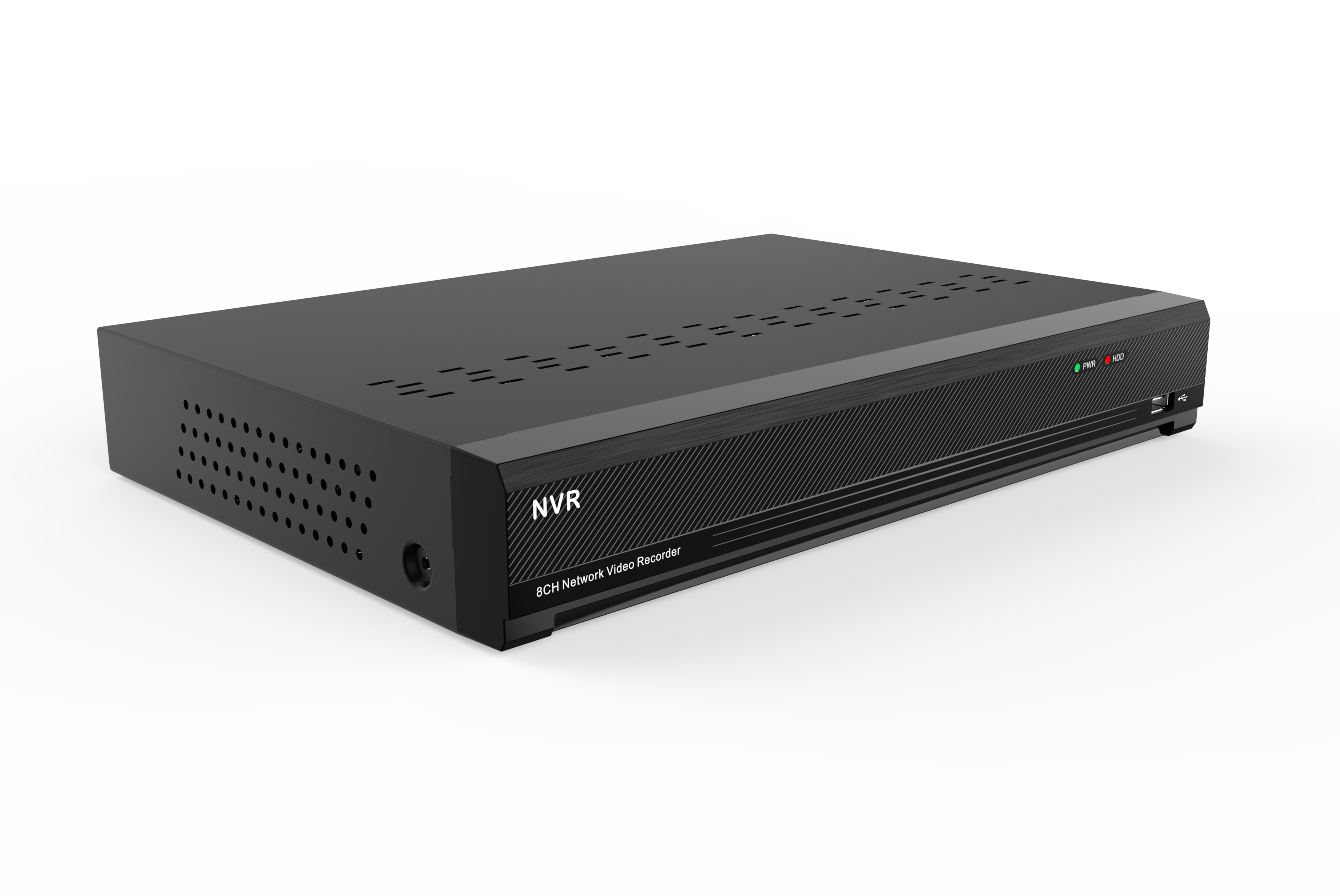

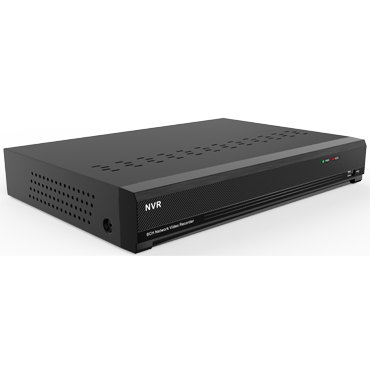

BLUE JAY 5MP 8CH EMBEDDED Plug & Play POE NVR

Categories:

● Up to 5 Megapixels resolution recording

● Support 1-ch HDMI, 1-ch VGA

● 60M bandwidth

● 1 SATA Up to 10TB

● Plug & Play with up to 8 independent PoE network interfaces

● Support dual-os to ensure high reliablility of system running

● Support H.265+/H.265/H.264/MPEG4 video formats

● Support Onvif, PSIA, CGI, Support Plug in & Play with DSS-H

● Support P2P, Cloud Backup

Technical Specifications
Model No.NVR-4108P8
Video/Audio input
Video compressionH.264, H264+, H265, H265+
IP Video input8-ch
Incoming Bandwidth60 Mbps
Outgoing Bandwidth48 Mbps
Two-way audio inputN/A
Video /Audio output
HDMI output1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
VGA output1-ch, resolution: 1920 x 1080P /60 Hz ,1440 x 900 /60 Hz, 1280 x 1024 /60 Hz,1280 x 720 /60 Hz, 1024 x 768 /60 Hz
CVBS outputN/A
Video spot outputN/A
Encoding resolution5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF
Frame rate30 fps
Video bit rate32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps)
Audio outputN/A
Audio bit rateN/A
Dual-streamSupport | (Sub-stream at CIF / QCIF: 30fps)
Stream typeVideo, Video & Audio
Playback resolution5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF
Synchronous playback8-ch 1080P
Hard Disk
SATA1 SATA interfaces
CapacityUp to 12TB capacity for each disk
Interface
Network interface1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface 8 independent 10 / 100 Mbps PoE Ethernet interfaces
Web BrowserIE 7, IE 8, IE 9
P2P ConnectionBuilt in
Mobile AppRXCAMVIEW Android/iPhone
Serial interfaceN/A
USB interface2 x USB2.0
Alarm in/outN/A
General
Power supply12V DC
Consumption≤15 W
Working temperature14ᵒF - 131ᵒF
Working humidity10% ~ 90%
Chassis1U chassis
Dimensions12x9x2 inch
Weight< 2.2 Lb
