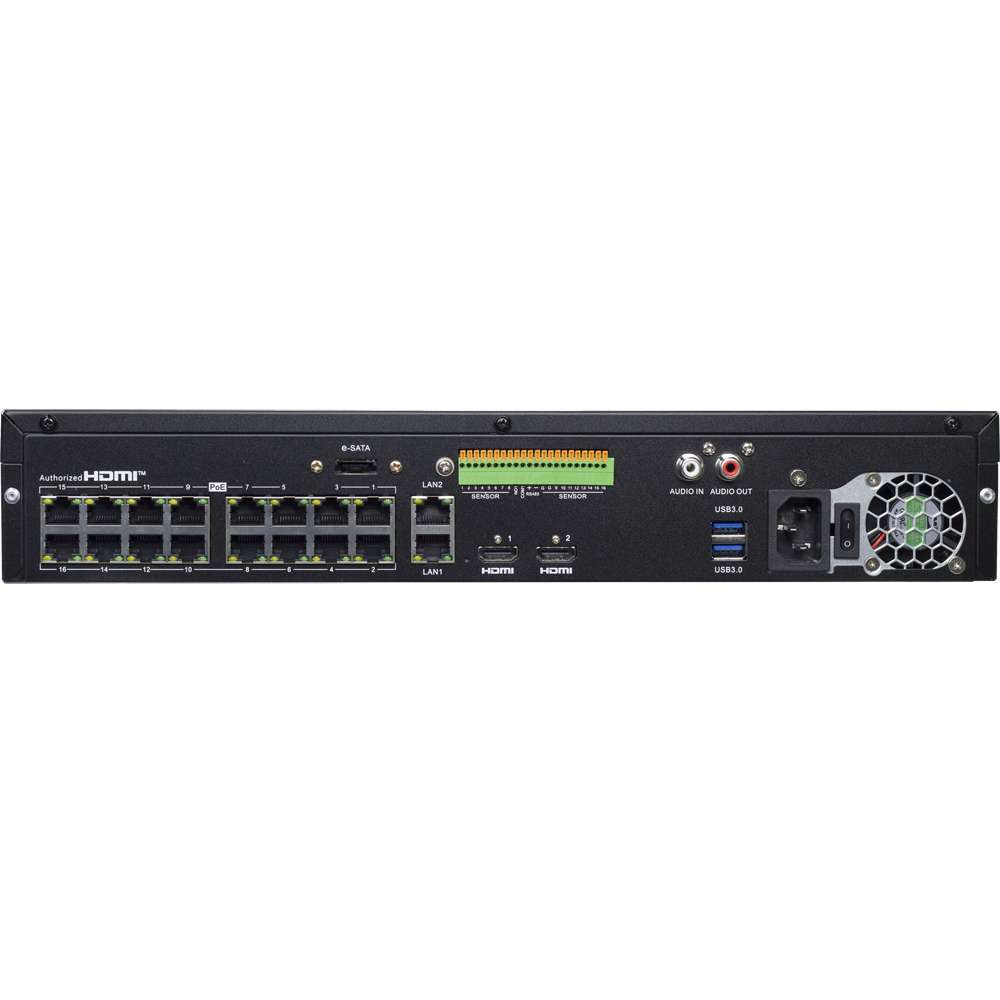

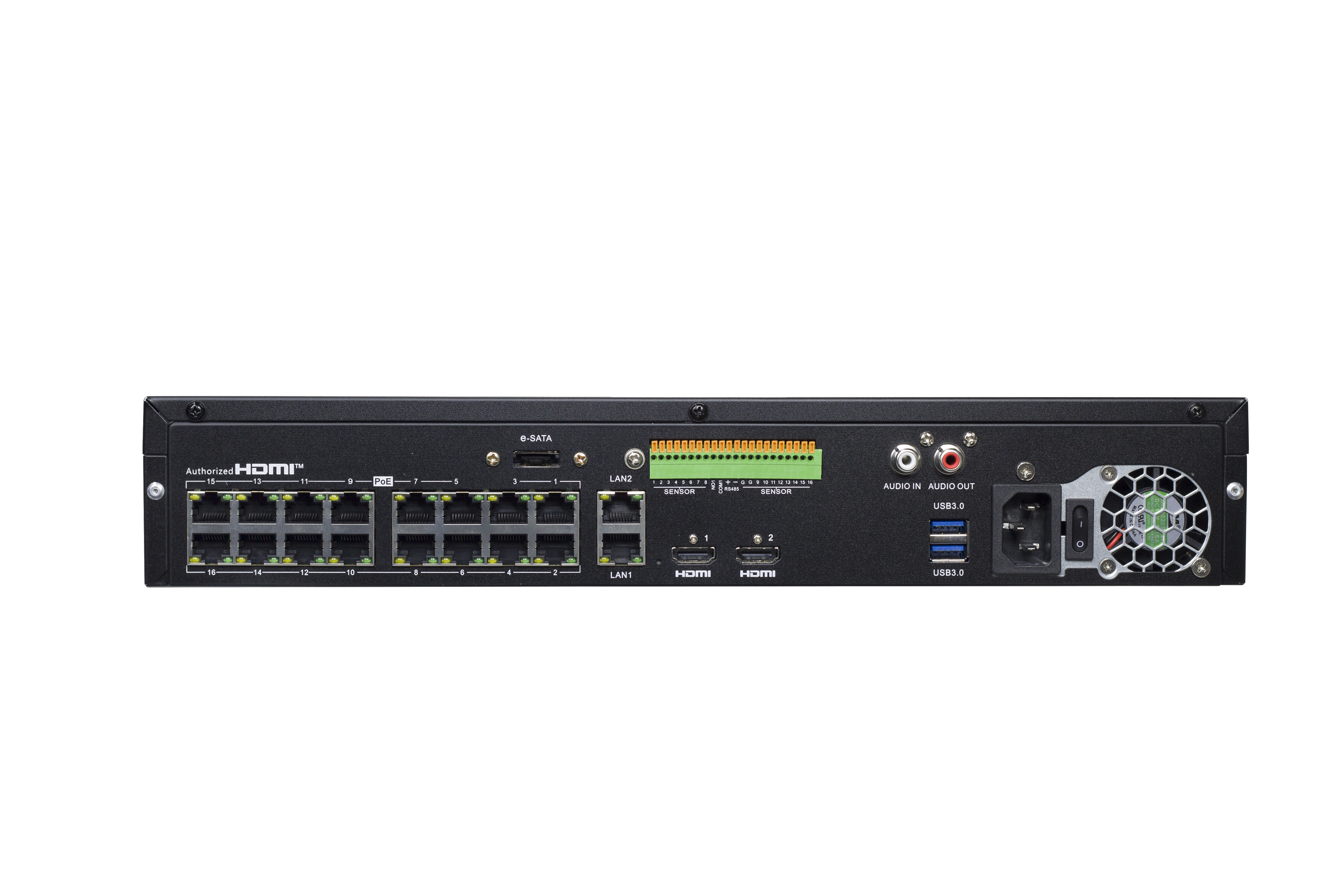

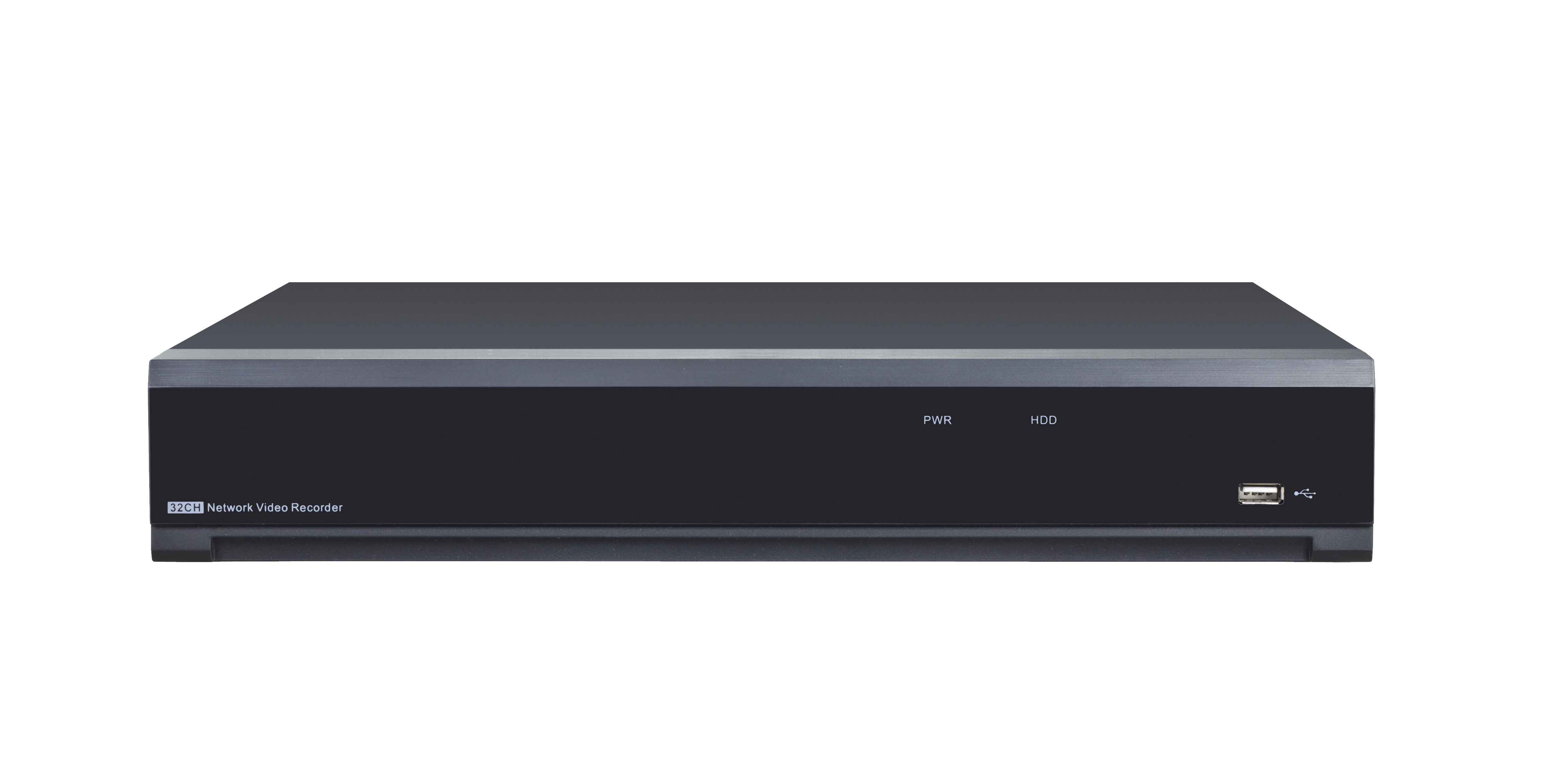

NVR-9432P16-C
"NDAA COMPLIANCE" CLOUD 12MP 4K 32CH AI+ EMBEDDED Plug & Play 16 POE NVR Cloud Ready
● Up to 12 Megapixels resolution recording
● Support Dual HDMI, HMDI 1&2 4K(3840x2160)
● 640M bandwidth
● Up to 4 SATA interfaces, Up to 72TB
● Plug & Play with up to 16 independent PoE network interfaces
● Support dual-os to ensure high reliablility of system running
● Support H.265+/H.265/H.264/MPEG4 video formats
● Support Onvif, PSIA, CGI, Support Plug in & Play with DSS-H
●AI+ Include Face Recognition(FR) Human & Vehicle Detection(PD&VD) Perimeter Intrusion Detection(PID) Line Crossing Detection(LCD) Cross Counting(CC) Stationary Object Detection(SOD) Heat Map(HM) Crowd Density Detection(CD) Queue Length Detection(QD) License Plate Detection(LPD) Rare Sound Detection(RSD)
| Technical Specifications | |
| Model No. | NVR-9432P16 |
| Video/Audio input | |
| Video compression | H.264, H265 |
| IP Video input | 32-ch |
| Incoming Bandwidth | 640 Mbps |
| Outgoing Bandwidth | 640 Mbps |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video /Audio output | |
| HDMI 1 output | 1-ch, resolution: 4K(3840*2160)/60Hz,4 K(3840*2160)/30Hz,1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| HDMI 2 output | 1-ch, resolution: 4K(3840*2160)/60Hz,4 K(3840*2160)/30Hz,1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| VGA output | N/A |
| CVBS output | N/A |
| Video spot output | N/A |
| Encoding resolution | 12MP,8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Frame rate | 30 fps |
| Video bit rate | 32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps) |
| Audio output | 1-ch, RCA (Linear, 600 Ω) |
| Audio bit rate | 16 Kbps |
| Dual-stream | Support | (Sub-stream at CIF / QCIF: 30fps) |
| Stream type | Video, Video & Audio |
| Playback resolution | 12MP,8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Synchronous playback | 16-ch 8MP |
| Hard Disk | |
| SATA | 4 SATA interfaces |
| Capacity | Up to 18TB capacity for each disk |
| Interface | |
| Network interface | 2 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface 16 independent 10 / 100 Mbps PoE Ethernet interfaces |
| Web Browser | IE, EDGE, CHROME, SAFARI, FIREFOX |
| Serial interface | 1 RS-485 half-duplex interface |
| P2P Connection | Built in |
| Mobile App | RXCAMVIEW Android/iPhone |
| USB interface | 1 x 3.0 USB Backup/Upgrade 2 x 2.0 USB |
| Alarm in/out | 16ch in / 1ch out |
| Reset | Press 10 Sec Reset |
| General | |
| Power supply | AC 110~240V |
| Consumption | ≤12W |
| Working temperature | 14ᵒF - 131ᵒF |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimensions | 15x 13.40 X2.5 inch |
| Weight | < 4.2 Lb |
